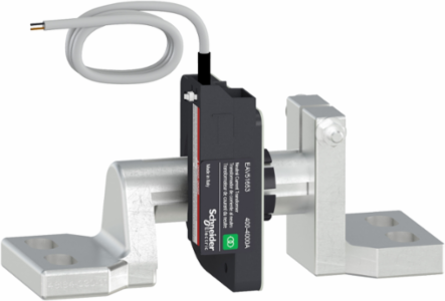

Schneider Electric LV833576SP External current sensor, MasterPact MTZ1, neutral and residual earth fault protection, rating 400A-1600A, spare part
- MPN: LV833576SP
- PPN: SCH-LV833576SP
CAD
$1153.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
External current sensor, MasterPact MTZ1, neutral and residual earth fault protection, rating 400A-1600A, spare part
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
- Width
- 3.88 in
Height4.25 in
Depth208.3 mm
Complementary Attributes
- Line Rated Current
- 400-1600 A
Important Information Attributes
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Persona Type Ids
- PB
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- protection
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Provided Equipment
- 1 instruction sheet
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Useful
- 107.9 mm
- Width Real
- 98.6 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504312000
Market SegmentationCommercial, Industrial
Local Publishable Date2025-10-29
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Persona Type NamesPanel Builder
Tier3
Function OptionStandard
Current Transformer Typeneutral + earth fault protection
Device Short NameTCE
Offer Typespare part
Product Or Component Typeexternal sensor
RangeMasterPact
Sustainable PackagingNo
Height Nominal107.9 mm
Width Nominal98.6 mm
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)3.227 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Without Single Use Plastic
- No
Take BackNo
Recycled Metal Content At Cr Level0 %
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- external sensor
Provided Equipment1 instruction sheet
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
