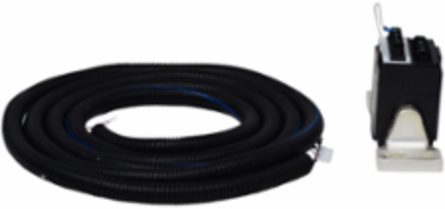

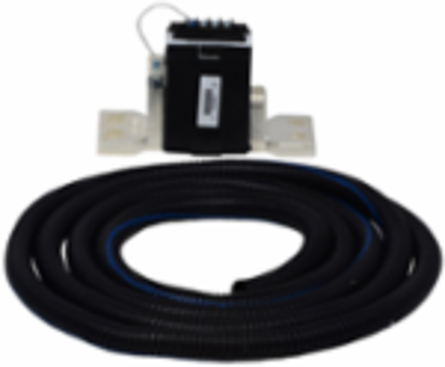

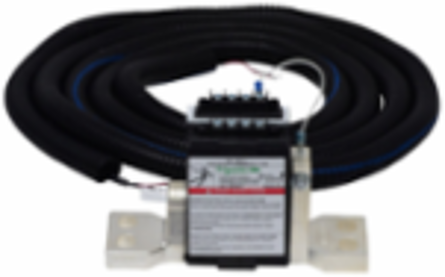

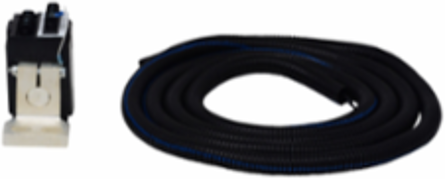

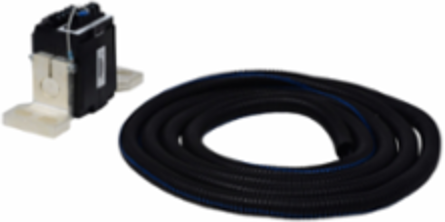

Square D S33576 PowerPacT P Current Transformer Sensor 400-1600A

MPN: S33576
UPC: 785901942764
PPN: SCH-S33576
UNSPSC: 39121603

$1247.26

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This current transformer is for applications requiring ground fault protection and metering. It is not for source ground return (SGR) or modified differential ground fault (MDGF) applications. It is for use with PowerPacT P-Frame circuit breakers. This current transformer is rated for 400A to 1600A and must be compatible with the rating of the circuit breaker. This product complies with UL standards.

Features

Neutral current transformer for use with PowerPact P, MasterPact Cirvuit breakers
Current transfomer sensor is rated as 400 A to 1600 A
Current transformers are used for applications requiring ground-fault protection or for neutral protection and metering

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Complementary Attributes

Line Rated Current	250-250 A

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Range Of Product	PowerPact P, MasterPact NT
Local Publishable Date	2026-04-10
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	4
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Mounting Location	external
Product Destination	current transformer
Returnability	Yes
Tightening Torque	34-34 N.m
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1913
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	sensor
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Customs Code	8504314065

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
