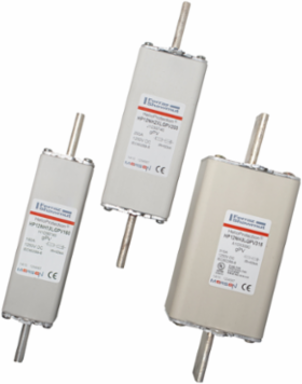

Mersen K1048671 HelioProtection PV Fuse-Link 125A 1250VDC Size 1L for Direct Mounting
- MPN: K1048671
- PPN: FER-K1048671
CAD
$137.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mersen HP12NH photovoltaic (PV) fuse series was engineered and designed specifically for the protection of photovoltaic systems. Helio-Protection® HP12NH fuse links are designed for the protection of cables in a PV group of chains when a short circuit occurs in a panel (main fuse category). This HelioProtection® main fuse range enlarges our PV fuse links offering on a size having a worldwide acceptance. They are of the gPV type and comply with both IEC 60269-6 and UL 2579 PV standards. They are also available with bolted type blades for direct mounting.
Features
- Global acceptance
- Low fault current interrupting capability
- Temperature cycle withstand capability
- Durable construction for enhanced system longevity
- High efficiency with low power losses
Documentation & Downloads
Specifications
Key Specifications
- Available in 3 versions
- plain blade, direct mounted, direct mounted with striker
- Rated Voltage Dc Iec
- 1250 V
- Power Dissipation At Intermediate Current Value
- 11.5 W @ 0.7 In W
- Country Of Origin
- DE,FR,TN
- Product Brand
- HelioProtection®
- Connection Terminal Type
- DIN Type Blades
- Speed Characteristic
- gPV
- Max Rated Breaking Capacity Dc 1
- 50 kA @ 1250 V, L/R = 1 ms
Ampere Rating125 A
Rated Voltage Dc Ul1250 V
Power Dissipation At Rated Current Value29 W
Product LineHelioProtection® HP12NHXL, Photovoltaic fuse-links gPV 1250VDC
Connection Terminal MaterialSilver-Plated Copper
Fuse Size1XL
MountingClip
