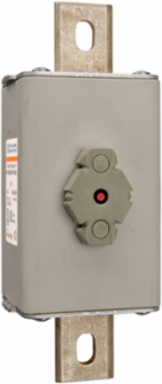

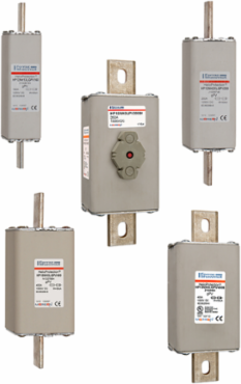

Mersen T1048679 HelioProtection NH Fuse-Link gPV, 1500VDC, Size 3L, 160A, DIN Blades
- MPN: T1048679
- PPN: FER-T1048679
CAD
$584.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen HP15NH photovoltaic (PV) fuse serie was engineered and designed specifically for the protection of photovoltaic systems. Helio-Protection® HP15NH fuse links are designed for the protection of cables in a PV group of chains when a short circuit occurs in a panel (main fuse category). This HelioProtection® main fuse range enlarges our PV fuse links offering on 1XL/2XL/3L sizes having a worldwide acceptance. They are of the gPV type and comply with both IEC 60269-6 and UL 2579 PV standards. They are available with plain blades, bolted blades for direct mounting with and without striker.
Specifications
Key Specifications
- Rated voltage DC UL
- 1500 V
- Ampere Rating
- 160 A
- AC or DC
- DC
- Fuse Size
- 3L
- Max. Rated Breaking Capacity DC
- 150 kA @ 1500 V, L/R = 3 ms
- Connection/Terminal Type
- DIN Type Blades
- Power Dissipation at Rated Current Value
- 36 W
- Length
- 8.07 in
- Weight
- 3.66 lb
Rated voltage DC IEC1500 V
ROHS CompliantYes
Speed/CharacteristicgPV
MountingDirect Mount
Connection/Terminal MaterialSilver-Plated Copper
Power Dissipation at Intermediate Current Value15 W @ 0.7 In W
Width2.76 in
Height2.91 in
