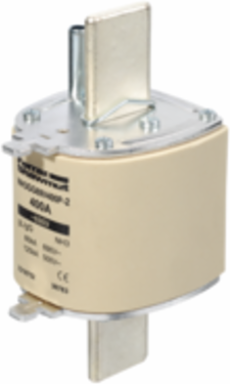

Mersen NH0GG50V160P-2 NH Fuse-Links gG 500-690VAC, 32-1250 A, Ceramic, Striker Size 0-3
- MPN: NH0GG50V160P-2
- PPN: FER-NH0GG50V160P-2
CAD
$175.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The NH system is classified among plug-in fuse systems and is composed of: fuse-base (possibly including terminal covers and phase barriers) fuse-link with blade contact fuse-link replacement device (LV HRC fuse puller) Since the design of this system cannot guarantee non-interchangeability of rated current, it must be handled by a qualified professional.
Features
- Lead free contact blades
- 0% cadmium
- Dimensions according to DIN 43 620 Parts 1 to 4
Specifications
Product Details
| Ampere Range | 32 - 1250 A |
|---|---|
| CE conformity | Yes |
| Lead Free | Consult Technical Services |
| Body Style | Square |
| ROHS Compliant | Consult Technical Services |
| Materials Contact | Copper, Silver-plated |
| AC Voltage Range | 500 - 690 VAC |
|---|---|
| Body Material | Ceramic |
| Speed / Characteristic | gG |
| Standards | VDE 0636 Part 201 IEC 60269-1 and -2 |
| Applications | gG: General purpose cable and line protection |
| Size per Standard | 0 1 2 3 |
