nVent Hoffman NHZ431246G300 SpectraCool Hazardous Location AC, 11000 BTU, 460V, 3-Phase, Lt Gray
- MPN: NHZ431246G300
- UPC: 783510286514
- PPN: HOF-NHZ431246G300
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
SpectraCool Hazardous Location Air Conditioners are designed for Class 1 Div 2 Groups A, B, C, D T4. This SpectraCool Narrow Hazardous Location AC, NHZ431246G300 item is rated 11000BTU 460V with material of Steel color Lt Gray.
Features
- Not re-built from light industrial air conditioners
- Painted galvanized sheet metal cover for rugged factory and outdoor environments
- Corrosion resistant coating on ambient side components for Type 4X models
- Corrosion resistant coating on ambient and enclosure side components for Type 4X Offshore models
- Dust resistant coils for filterless operation in most environments
- Cleanable, reusable aluminum mesh filter protects coils for extremely dusty and dirty atmospheres
- Digital temperature control
- Narrow design to accommodate 12-in (300-mm) deep cabinets
- R134a, R513A or R407C earth-friendly Refrigerant
- Models for 115, 230 and 400/460 3-phase VAC power input
- UL Listed to save customers time and money with agency approvals
- Easy-Mount flanges for simple installation
- Standard Type 4/4X models include
- - Active condensate management with heater strip
- - Compressor Heater
- - Head Pressure Control
- - Power-off relay for door switch and other system requirements
- - Malfunction switch

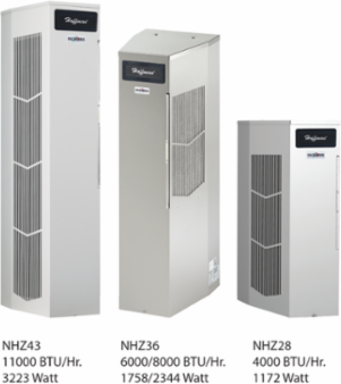

- Nominal cooling capacities:
- - NHZ28 4000 BTU/hr. (1172 W)
- - NHZ36 6000 & 8000 BTU/hr. (1758 and 2344 W)
- - NHZ43 11000 BTU/hr. (3223 W)
- Outdoor model operating temperature range from -40 F/ -40 C to 131 F/ 55 C (125 F/52 C on NHZ28 Series and NHZ43 Series 115V)
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Nominal Capacity Watts
- 3,223
- Number of Phases
- 3
- Width (W)
- 292
- Material
- Mild Steel
- Operating Temperature
- -40
- Thickness (T)
- 1.27
- Product Family
- SpectraCool
- Sub Brand
- SpectraCool
- BTU Rating
- 11,000
- Power
- 1678/2107 W
- Phase
- 3
Nominal Capacity Btu/h11,000
Nominal Voltage460
Height (H)1,092
Depth (D)356
Remote Access ControlNo
Max Current3.5
Color CodeRAL 7035
Weight127
Voltage Rating460 V
Amperage Rating3.4/3.6 A
Frequency Rating50/60 Hz
ColorLt Gray
