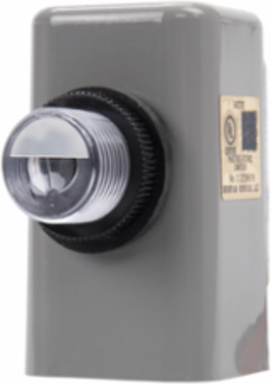

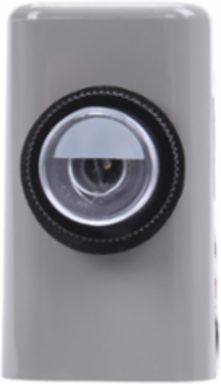

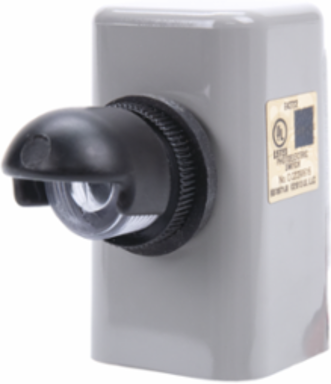

Intermatic EK4035S NIGHTFOX Button Electronic Photocontrol, 480 VAC

MPN: EK4035S
UPC: 078275152397
PPN: INT-EK4035S
UNSPSC: 39121524

$55.82

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts internally and requires a minimum enclosure aperture of 5/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.

Features

Non-drift silicon light sensor with IR filter.
DC relay with zero-crossing circuitry for extended life.
Conformal coated PCB.
15-year design life.
Exceeds 10,000 ON/OFF switching cycles.
Fail ON mode.
Ideal for single or multifixture HID and LED installations.
220 J MOV surge protection element.
Mounts internally to enclosure.
Features 3/8" - 18 NPSM thread for a minimum installation hole size of 5/8 inch diameter.

Documentation & Downloads

Specifications

Key Specifications

Input Voltage Rating Range(s)	480 VAC, 50/60 Hz
Color	Gray
Marketing Description	NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts internally and requires a minimum enclosure aperture of 5/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.
Width	1.313 in
Country of Origin	Mexico
