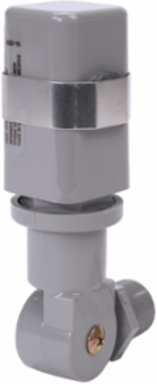

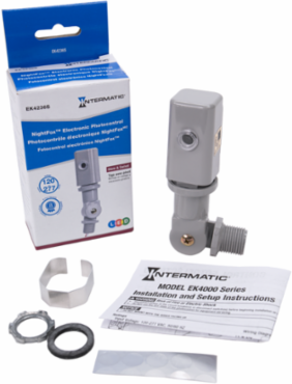

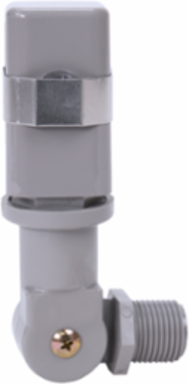

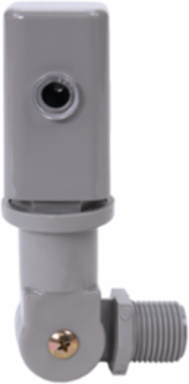

Intermatic EK4227S NIGHTFOX 347 V Electronic Photocontrol with 1-1/4 Inch Depth
- MPN: EK4227S
- UPC: 078275152380
- PPN: INT-EK4227S
- UNSPSC: 39121524
CAD
$55.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts externally and requires a minimum enclosure aperture of 7/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.
Features
- Non-drift silicon light sensor with IR filter
- DC relay with zero-crossing circuitry for extended life
- Conformal coated PCB
- 15-year design life
- Exceeds 10,000 ON/OFF switching cycles
- Fail ON mode
- Ideal for single or multifixture HID and LED installations
- 220 J MOV surge protection element
- 1⁄2"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter
- #18 AWG wire leads
Documentation & Downloads
Specifications
Additional
- Input Voltage
- 347 VAC, 50/60 Hz
- Magnetic Ballast Load
- 1800 VA
- Frequency
- 50/60 Hz
- Sensor Type
- Non-drift silicon with IR filter
- Relay Type
- DC relay with zero-crossing circuitry
- Height
- 5.625 in
- Minimum Enclosure Aperture
- 7/8 in diameter
- Wire Gauge
- #18 AWG
- Warranty Period
- 8-Year limited
- Color
- Gray
- Standards and Certifications
- ANSI C136.24, Green Energy +
- Country of Origin
- Mexico
Tungsten Load Rating1000 W
Electronic Ballast Load Rating2 A
Surge Protection220 J MOV, 5,000 A Surge
Fail ModeON
Depth1.25 in
Width1.313 in
Wire Lead Length6 in
Mount StyleStem and Swivel Mount
Housing MaterialPolycarbonate
UL CertificationcULus
RoHS ComplianceNo
Operating Temperature Range-40 °F to 158 °F (-40 °C to 70 °C)
