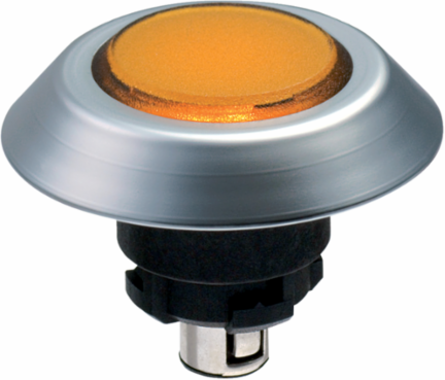

Schmersal 101163604 NME - Illuminated Signal Light, 44.5 mm Diameter, IP67, Integrated Multi-LED
- MPN: 101163604
- PPN: SCM-101163604
CAD
$142.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NME - Illuminated Signal Light, 44.5 mm Diameter, IP67, Integrated Multi-LED
Features
- flat dome
- integrated multi-LED, extra bright in device head
Documentation & Downloads
Specifications
Note
- Note (General)
- for other input voltages, a special light element must be used

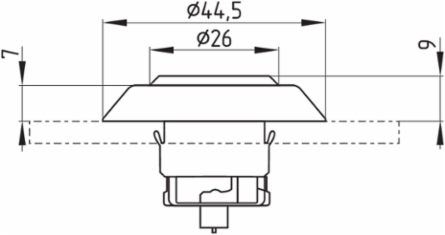

Mechanical data - Dimensions
- Diameter total
- 44.5 mm
- Diameter of the dome
- 26 mm
- Mounting diameter
- 22.3 mm
- Thickness of the front panel, maximum
- 6 mm
Height of the dome2 mm
Diameter of the front ring44.5 mm
Thickness, of the front panel, minimum1.5 mm
Spacing50 x 50 mm
Scope of delivery
- Note (scope of delivery, number and type)
- Mounting flange ELM (1014387) is included in delivery
General data - Features
- Illuminable
- Yes
- Fully insulated
- Yes
Mounting flangeYes
Integral system diagnostics, generalYes
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Design
- Round | Flat dome
- Sealing type
- Membrane | Lip gaskets | Form seals
- Material of the front ring
- ABS, chrome-plated
- Colour of the front ring
- Silver
VersionsIndicator light
Installation conditions (mechanical)arbitrarily
Material of the domePA (12)
Colour of the domeYellow
Gross weight50 g
Ambient conditions
- Degree of protection
- IP67 | IP69K
- Restistance to shock
- 30 g / 18 ms
Ambient temperature-25 ... +80 °C
Mechanical data
- Mounting
- Mounting flange ELM
Tightening torque of the screw0.6 Nm
Approvals - Standards
- Certificates
- BG | cULus | IPA
Status indication
- Note (Integral System Diagnostics, status )
- for 24 VAC/DC
