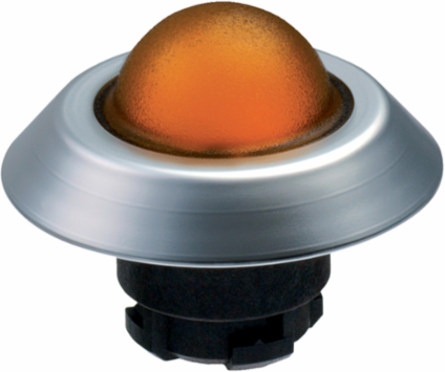

Schmersal 101174526 NML Illuminated Signal 44.5 mm Diameter, IP67, Yellow

MPN: 101174526
PPN: SCM-101174526

$38.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

NML Illuminated Signal 44.5 mm Diameter, IP67, Yellow

Features

high calotte
for Ba9S LED's

Documentation & Downloads

Specifications

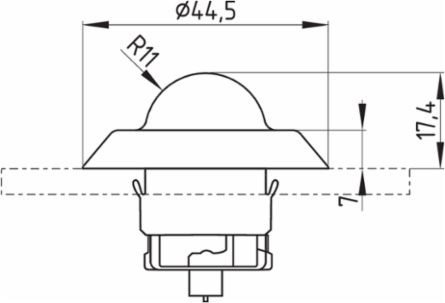

Mechanical data - Dimensions

Diameter total	44.5 mm
Diameter of the dome	26 mm
Thickness, of the front panel, minimum	1.5 mm
Spacing	50 x 50 mm

Height of the dome	10.4 mm
Mounting diameter	22.3 mm
Thickness of the front panel, maximum	6 mm

Scope of delivery

Note (scope of delivery, number and type)	Mounting flange ELM is included in delivery

General data - Features

Illuminable	Yes
Fully insulated	Yes

Mounting flange	Yes

General data

Standards	EN IEC 60947-5-1 \| EN IEC 60947-1
Design	High
Sealing type	Membrane \| Lip gaskets \| Form seals
Material of the front ring	ABS, chrome-plated
Colour of the dome	Yellow
Gross weight	30 g

Versions	Indicator light
Installation conditions (mechanical)	arbitrarily
Material of the dome	PA (12)
Colour of the operating element	Yellow
Colour of the front ring	Silver
