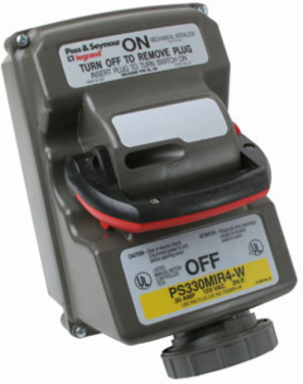

Pass & Seymour PS330MIR4W Non-Fusible Mechanical Interlock Receptacle 30A 120VAC 12-3/8 Inch Height
- MPN: PS330MIR4W
- UPC: 785007421125
- PPN: P-S-PS330MIR4W
- UNSPSC: 39121406
CAD
$2252.18
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Non-Fusible Mechanical Interlock Receptacle 30A 120VAC 12-3/8 Inch Height
Features
- Top or Bottom feed.
- Unit shipped with no holes drilled: a top and bottom feed spot drill is provided for locating hole saw or knockout.
- End user decides at installation whether top or bottom feed is appropriate.
- No closure plug kits required.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Height | 12.38 in |
| Color | Gray |
| Amperage | 30.0 A |
| Number of Poles | Double Pole |
| Special Features | Impact, chemical resistant, non conductive retaining screw, brass male/female contacts |
| Operating Temperature | -50°-60°C |
| Number of Receptacles | 1.0 |
| Connection Location | Top and Bottom |
| Operating Temperature Max | 60.0 °C |
| Outlet Type | Pin & Sleeve |
| Wall Plate Included | Yes |
| Number of Wires | 3.0 |
| Depth | 8.25 in |
|---|---|
| Width | 6.88 in |
| Product Line | Pass & Seymour |
| Application Sector | Industrial |
| Standard | UL Listed |
| IEC Clock Position | Clock Position 4 |
| Operating Temperature Min | -50.0 °C |
| Features | Adjustable Mounting Feet |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year |
| Indoor/Outdoor | Indoor |
| Enclosure Type | NEMA 4X; NEMA 12 |
| Voltage | 120.0 V |
