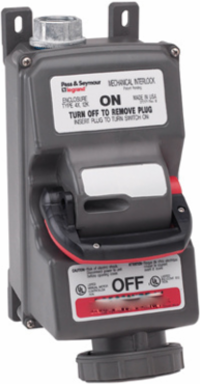

Pass & Seymour PS530MIR9W Non-Fusible Mechanical Interlock 30A 4-Pole 5-Wire 6.88 Inch Width
- MPN: PS530MIR9W
- UPC: 785007420548
- PPN: P-S-PS530MIR9W
CAD
$2333.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Non-Fusible Mechanical Interlock 30A 4-Pole 5-Wire 6.88 Inch Width
Features
- Top or Bottom feed.
- Unit shipped with no holes drilled: a top and bottom feed spot drill is provided for locating hole saw or knockout.
- End user decides at installation whether top or bottom feed is appropriate.
- No closure plug kits required.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 8.25 in
- Height
- 12.38 in
- Voltage
- 120.0 V
- Country of Origin
- United States
- Warranty Type
- 1-Year
- Number of Poles
- 4-Way
- Enclosure Type
- NEMA 4X
- Outlet Type
- Pin & Sleeve
- Application Sector
- Industrial
- Connection Location
- Top and Bottom
- Wire Connection Type
- Screw Terminals
- Operating Temperature Min
- -50.0 °C
- Special Features
- Impact, chemical resistant, non conductive retaining screw, brass male/female contacts
- Product Line
- Pass & Seymour
Amperage30.0 A
Width6.88 in
StandardUL Listed
Number of Wires5.0
Indoor/OutdoorIndoor
Enclosure TypeNEMA 12
Wall Plate IncludedYes
Number of Receptacles1.0
FeaturesAdjustable Mounting Feet
IEC Clock PositionClock Position 9
Operating Temperature Max60.0 °C
Operating Temperature-50°-60°C
ColorGray
