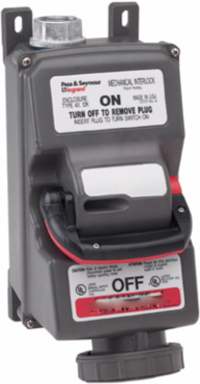

Pass & Seymour PS5100MIR7W Non-Fusible Mechanical Interlock 100A, 4-Pole, 277/480V, Gray, 14.13 Inch Height
- MPN: PS5100MIR7W
- UPC: 785007015683
- PPN: P-S-PS5100MIR7W
CAD
$4149.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Non-Fusible Mechanical Interlock 100A, 4-Pole, 277/480V, Gray, 14.13 Inch Height
Features
- Top or Bottom feed.
- Unit shipped with no holes drilled: a top and bottom feed spot drill is provided for locating hole saw or knockout.
- End user decides at installation whether top or bottom feed is appropriate.
- No closure plug kits required.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 9.5 in
- Height
- 14.13 in
- Product Line
- Pass & Seymour
- Voltage
- 277.0 V
- Standard
- UL Listed
- Warranty Type
- 1-Year
- Number of Poles
- 4-Way
- Enclosure Type
- NEMA 4X
- Outlet Type
- Pin & Sleeve
- Application Sector
- Industrial
- Connection Location
- Top and Bottom
- Wire Connection Type
- Screw Terminals
- Operating Temperature Min
- -50.0 °C
- Special Features
- Impact, chemical resistant, non conductive retaining screw, brass male/female contacts
ColorGray
Width6.88 in
Country of OriginUnited States
Amperage100.0 A
Number of Wires5.0
Indoor/OutdoorIndoor
Enclosure TypeNEMA 12
Wall Plate IncludedYes
Number of Receptacles1.0
FeaturesAdjustable Mounting Feet
IEC Clock PositionClock Position 7
Operating Temperature Max60.0 °C
Operating Temperature-50°-60°C
