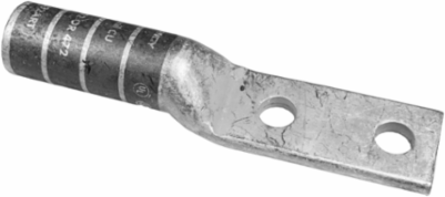

Burndy YA262NT14 HYLUGTM Non-Insulated Tin Plated Terminal, 3.22 Inch Length, 2/0 AWG Copper
- MPN: YA262NT14
- UPC: 781810217559
- PPN: BUR-25017911
CAD
$44.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CU HYDENT-NARROW TONGUE
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/2 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - D inch
- 0.93 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 3.22 in
- Dimension - Outside Diameter inch
- 0.56 in
- Dimension - Strip Length inch
- 1-9/16
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.50 in
Dimension - Bolt Size fraction1/4
Dimension - Hole Size inch0.27 in
Dimension - L Length Overall mm82 mm
Dimension - N inch0.31 in
Dimension - Pad Width inch0.48 in
Dimension - Z inch0.34 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- UL Listed
- Yes
Standards - RoHS Compliance StatusCM
Conductor Related
- Conductor - Copper Solid Size
- 2/0 AWG
- Conductor - Copper Str Navy Size
- 125 (61) Navy
- Conductor - Copper Str Size
- 2/0 AWG
- Conductor - Material
- Copper
Conductor - Copper Solid Size Range2/0 AWG
Conductor - Copper Str Navy Size Range125 (61) Navy
Conductor - Copper Str Size Range2/0 AWG
General
- Color Code
- Black
- Die Index
- 13
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 2
- Plating Type
- Tin - Electro Plated
- Type
- Long Barrel, Tin Plated
- UPC 12 Digit
- 7818102175599
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810217559
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
