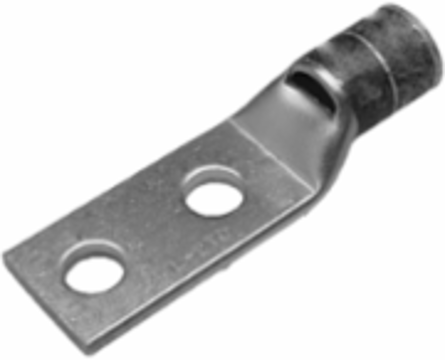

Burndy YA3C2L Copper Tubing Terminal, 3 AWG, 5/16 Inch Bolt, Tin Plated, 2.64 Inch Length

MPN: YA3C2L
UPC: 781810311455
PPN: BUR-10009807

$19.20

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Copper Tubing Terminal, #3 AWG, #2 Sol., 50 Navy, 5/16 IN Bolt, 9 Index

Documentation & Downloads

Specifications

Dimensions

Bolt Size	5/16 in
Dimension - B Length inch	0.88 in
Dimension - D inch	1.45 in
Dimension - L Length Overall mm	67 mm
Dimension - N inch	0.34 in
Dimension - Pad Width inch	0.55 in
Dimension - Stud Size inch	5/16
Length	2.64 in
Physical Attribute - Tongue Angle	Straight

Dimension - B Length fraction	7/8 in
Dimension - Bolt Hole Size inch	0.33 in
Dimension - Hole Size mm	8 mm
Dimension - Length Overall inch	2.64 in
Dimension - Outside Diameter inch	0.38 in
Dimension - Strip Length inch	15/16
Dimension - Z inch	0.36 in
Outside Diameter	0.38 in

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper DLO Size Range	N/A
Conductor - Copper Solid Size Range	2 AWG
Conductor - Copper Str Navy Size Range	50 (19) Navy
Conductor - Copper Str Size Range	3 AWG

Conductor - Copper Solid Size	2 AWG
Conductor - Copper Str Navy Size	50 (19) Navy
Conductor - Copper Str Size	3 AWG
Conductor - Material	Copper

General

Color Code	White
Die Index	9
Material	Copper
Plated	Y
Trade Name	HYLUG™
UPC	781810311455

Connector Type	Terminal
Feature - Barrel Type	Standard
Physical Attribute - Number of Holes	2
Plating Type	Tin - Electro Plated
Type	Standard Barrel, Tin Plated
