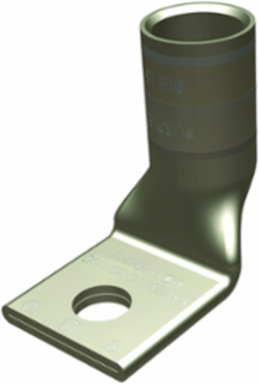

Burndy YAV27LTC516FX90 Compression Terminal, 1 Hole, Copper, Tin Plated, 3/0 AWG, 5/16 Inch Stud

MPN: YAV27LTC516FX90
UPC: 781810100172
PPN: BUR-001716

$32.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cu Tubing Compression Terminal, 1 Hole W/InspWindow, 3/0 AWG Class G-M, 3/0 (450/#24)DLO, 3/0 AWG Class B, C Code, 150 Navy, 5/16" Stud, 90 Deg Bent

Documentation & Downloads

Specifications

Additional

Voltage - Maximum	35000 V
Rating - KVA	35 kV
Conductor Material	Copper
Hole Quantity	1
Terminal Type	Compression
Dimension - Length Overall	1.17 in (30 mm)
Dimension - Bolt Hole Size	0.33 in (8 mm)
Dimension - Pad Width	1.03 in
Dimension - Z	0.36 in
Dimension - Strip Length	1 in
Certification - UL Listed	Yes
Standards - RoHS Compliance Status	CM

Rating - Minimum Voltage	600 V
Wire Size	3/0 AWG
Plating Type	Tin Plated
Stud Size	5/16 in
Orientation	90 Degree Bent
Dimension - Hole Size	0.33 in (8 mm)
Dimension - Bolt Size	5/16 in
Dimension - B Length	1.00 in
Dimension - N	0.34 in
Material	Copper, Tin Plated
Certification - CSA Approved	Yes
