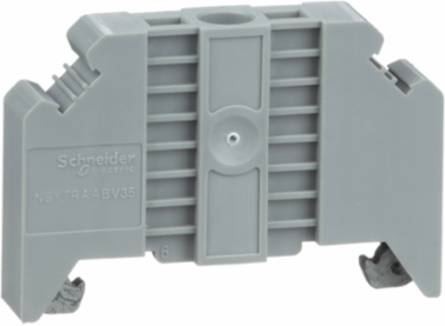

Linergy TR End Stop Set of 50, Grey, 50.5 mm Length, 9.5 mm Thickness
Schneider Electric

Schneider Electric NSYTRAABV35 Linergy TR End Stop Set of 50, Grey, 50.5 mm Length, 9.5 mm Thickness

  • MPN: NSYTRAABV35
  • PPN: SCH-NSYTRAABV35
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $5.31

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Linergy NSYTR end stop for terminal block. It is compatible with TRV screw terminal, TRH IDC, TRP push-in and TRR spring terminal block. It has grey surface treatment. Mounting by screws. Sold in lots of 50 units. It is compliant with Green Premium (RoHS/REACH).

    Features

    • Supplied in a bulk pack of 50, these 50.5 mm long heavy-duty end stops are engineered to lock down terminal block groups rigidly on standard symmetric DIN rails. By eliminating lateral shifting caused by machine vibration, cabinet transit, or heavy wiring harness pull, they maintain the mechanical integrity of your entire control panel and prevent component damage.
    • At a precise thickness of just 9.5 mm, these end stops provide maximum mechanical bracing while maintaining a compact footprint. This slim profile allows industrial panel builders and automation engineers to maximize the available rail area for active termination blocks, relays, and PLCs without compromising on structural stability.
    • Equipped with a reliable screw-tightened locking mechanism, these brackets bite firmly into the DIN rail to establish an unyielding physical boundary. This ensures a heavy-duty, slip-resistant hold that easily withstands continuous wire tension and routine field maintenance, far outperforming standard snap-on brackets that can pop loose under pressure.
    • Designed as part of the official Linergy TR series, these grey end stops offer flawless physical alignment with TRV screw terminals and TRR spring terminal blocks. This ecosystem-wide compatibility guarantees a clean, uniform look across your assembly while making it simple to snap on matching clip-in marker strips for neat, professional circuit identification.

    Documentation & Downloads

    Specifications

    Additional

    Product Type
    End Stop
    Thickness
    9.5 mm
    Mounting Mode
    by screws
    Material
    Halogen free plastic parts
    Color
    Gray
    Warranty
    18 months
    Length50.5 mm
    Weight14.8 g
    CompatibilityTRV screw terminal block, TRP push-in terminal block, TRR spring terminal block, TRH IDC terminal block
    ComplianceRoHS, REACH, Prop 65 Compliant, Halogen Free, Toxic Heavy Metal Free, Mercury Free
    RangeLinergy
