Weidmuller

Weidmuller 1674730000 ZAP/TW ZDK2.5

ZAP/TW ZDK2.5
  • MPN: 1674730000
  • PPN: WDM-1674730000

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$1.71/ EA

Description

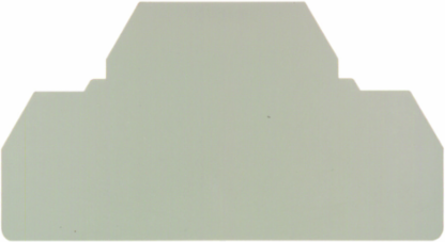

Z-series, End plate, Seperation plate

Specifications

Approvals

ROHS
Conform

Dimensions And Weights

Width
1.5 mm
Height
79 mm
Depth
43 mm
Net weight
4.365 g
Width (inches)0.059 inch
Height (inches)3.11 inch
Depth (inches)1.693 inch

Additional Technical Data

Installation advice
Direct mounting
Snap-onYes

Material Data

Material
Wemid
UL 94 flammability rating
V-0
Colourdark beige

Classifications

ETIM 6.0
EC000886
eClass 9.0
27-14-11-92
eClass 10.0
27-14-11-92
ETIM 7.0EC000886
eClass 9.127-14-11-33
UNSPSC30-21-18-27

System Specifications

Version
End and intermediate plate

Temperatures

Storage temperature, max.
40 °C
Storage temperature
10 °C...40 °C
Continuous operating temp., max.
120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
