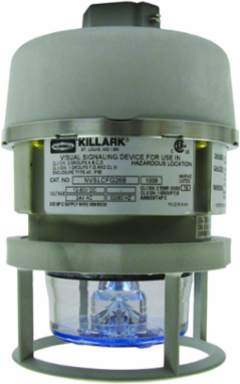

Killark NVSLCFG25AAG Gray Non-Metallic Corrosion Resistant Flashing LED Light Fixture 3/4 Inch Pendant Mount
Killark NVSLCFG25AAG Gray Non-Metallic Corrosion Resistant Flashing LED Light Fixture 3/4 Inch Pendant Mount
- MPN: NVSLCFG25AAG
- UPC: 783936070315
- PPN: HBL-NVSLCFG25AAG
- UNSPSC: 46171602
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1024.45/ EA
Description
NV2 Series - Gray Non-Metallic Corrosion Resistant Compact Flashing LED Light Fixture (LED Included) - 3/4 Inch Pendant Mount With Amber Strobelight And Guard - 120-240VAC At 50/60Hz
Features
- NVSL Series LED with very compact profile and 50,000 hours expected life steady - on or flashing.
- NVSZ Series Xenon with 10,000 hours expected life flashing only.
- LED utilizes inverted cone design to provide full 360 degree coverage for more light projection.
- LED and Xenon available in five colors colors - red, green, amber, blue and clear.
- Flash rate for LED is 7 micro flashes approximately every second for increased visual perception.
- Xenon flash rate 60 to 80 per minute
- Can be mounted in any orientation including lens in the UP or SIDE positions.
- Materials: High strength 30% glass-filled thermoset polyester body with Lexan® lens. Resists corrosive effects of most chemicals, hydrocarbons and solvents
- Designed for indoor and outdoor applications
- NVSL Series flashing LED with very compact profile and 50,000 hours expected life. LED utilizes inverted cone design to provide full 360 degree coverage for more light projection. Flash rate for LED is 7 micro flashes approximately every second for increa
Specifications
Specifications
- Country of Origin
- US
- Hazardous Rating(s)
- Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Division 2, Groups F, G;Class III, Divisions 1 & 2
- Hub Size
- 3/4"
- Length
- 5.5 in
- Color
- Gray
- Fixture Type
- Non-Metallic Corrosion Resistant Flashing Led Signal
- Size
- 5.5 in x 17.5 in x 5.5 in
- Type
- Non-Metallic Corrosion Resistant Flashing Led Signal
- Width
- 17.5 in
- Diameter - Inside
- 2.19 in
- Flexibility
- Rigid or IMC Conduit
- Lamp Type
- Steady
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- AMB LED FL 120-240VAC PEND+GRD
- Harmonization Code
- 8531809051
- Lead Time
- 10 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D20D202
- Light Source
- LED
- Series
- NV Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936070315
Each - Width17.500 in
Height5.5 in
IP RatingIP66
Optic TypePolycarbonate Globe - Amber
Dimensions5.5 in x 17.5 in x 5.5 in
MountingPendant
Special FeaturesNVSL Series flashing LED with very compact profile and 50,000 hours expected life. LED utilizes inverted cone design to provide full 360 degree coverage for more light projection. Flash rate for LED is 7 micro flashes approximately every second for increa
Voltage Rating120-240 VAC
Contact Rating60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Finish TypePowder Epoxy Paint
Frequency Rating50/60 Hz
Mounting TypePendant
Class CodeD20
Freight Class Code06316009
Image Actual Or RepresentativeA
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging1.85
MaterialPolyester, Fiberglass Reinforced
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
