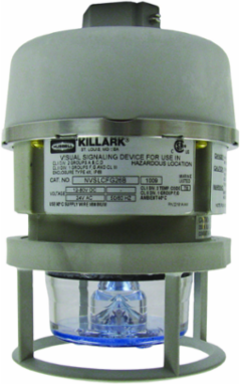

Killark NVSLCFG25RAG NV2 Series 5.5 Inch Non-Metallic Flashing LED Light Fixture, 120-240VAC, Pendant Mount
- MPN: NVSLCFG25RAG
- UPC: 783936070322
- PPN: HBL-NVSLCFG25RAG
- UNSPSC: 39111706
CAD
$1106.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NV2 Series - Gray Non-Metallic Corrosion Resistant Compact Flashing LED Light Fixture (LED Included) - 3/4 Inch Pendant Mount With Red Strobelight And Guard - 120-240VAC At 50/60Hz
Features
- NVSL Series LED with very compact profile and 50,000 hours expected life steady - on or flashing.
- NVSZ Series Xenon with 10,000 hours expected life flashing only.
- LED utilizes inverted cone design to provide full 360 degree coverage for more light projection.
- LED and Xenon available in five colors colors - red, green, amber, blue and clear.
- Flash rate for LED is 7 micro flashes approximately every second for increased visual perception.
- Xenon flash rate 60 to 80 per minute
- Can be mounted in any orientation including lens in the UP or SIDE positions.
- Materials: High strength 30% glass-filled thermoset polyester body with Lexan® lens. Resists corrosive effects of most chemicals, hydrocarbons and solvents
- Designed for indoor and outdoor applications
- NVSL Series flashing LED with very compact profile and 50,000 hours expected life. LED utilizes inverted cone design to provide full 360 degree coverage for more light projection. Flash rate for LED is 7 micro flashes approximately every second for increa
Specifications
Key Specifications
- ARRA Compliant
- Contact Manufacturer
- Dimensions
- 5.5 in x 17.5 in x 5.5 in
- Height
- 5.5 in
- IP Rating
- IP66
- Optic Type
- Polycarbonate Globe - Red
- Fixture Type
- Non-Metallic Corrosion Resistant Flashing Led Signal
- Size
- 5.5 in x 17.5 in x 5.5 in
- Type
- Non-Metallic Corrosion Resistant Flashing Led Signal
- Width
- 17.5 in
- Frequency Rating
- 50/60 Hz
- Mounting Type
- Pendant
- Description - Invoice
- RED LED FL 120-240VAC PEND+GRD
- Harmonization Code
- 8531809999
- Lead Time
- 10 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D20D202
- Light Source
- LED
- Series
- NV Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Country of OriginUnited States
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Division 2, Groups F, G;Class III, Divisions 1 & 2
Hub Size3/4"
Length5.5 in
ColorGray
MountingPendant
Special FeaturesNVSL Series flashing LED with very compact profile and 50,000 hours expected life. LED utilizes inverted cone design to provide full 360 degree coverage for more light projection. Flash rate for LED is 7 micro flashes approximately every second for increa
Voltage Rating120-240 VAC
Finish TypePowder Epoxy Paint
Lamp TypeSteady
Class CodeD20
Freight Class Code06316009
Image Actual Or RepresentativeA
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging1.85
MaterialPolyester, Fiberglass Reinforced
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936070322
NAICS Code3351222100
Certifications
- EU RoHS Indicator
- Contact Manufacturer
