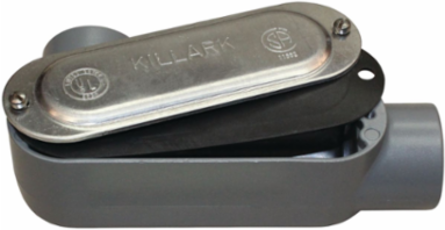

Killark OLL-1CG Aluminum Conduit Body with Cover & Gasket, Hub Size 1/2 Inch, Volume 4.0 cu in
Killark OLL-1CG Aluminum Conduit Body with Cover & Gasket, Hub Size 1/2 Inch, Volume 4.0 cu in
- MPN: OLL-1CG
- UPC: 783936049281
- PPN: HBL-OLL-1CG
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$20.40/ EA
Description
O Series/Duraloy 5 Series Aluminum Conduit Body with Cover And Gasket- LL Type - Hub Size ½" - Volume 4.0 cu in
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 4 cu. in.
Specifications
Specifications
- Country of Origin
- United States
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 0.1 in
- Length
- 5 in
- Type
- Conduit Body With Cover & Gasket
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- BODY,CVR,GASK 1/2" LL AL
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LL
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 13.200 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 40 EA
Dimensions5 in x 10 in x 0.1 in
ColorGray
Hub Size1/2"
Special FeaturesTapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 4 cu. in.
Width10 in
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.38
MaterialAluminum, Copper Free (less than 4/10 of 1%)
BOX SIZE8.750x15.500x6.000 (in)
Carton - Number of Sub Packs40
Carton - SCC-14 Next Lower Level Sub Pack00783936049281
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
