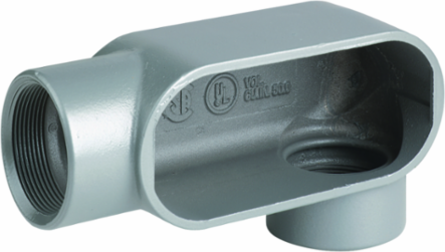

Killark LL17 1/2 Inch LL Hub Conduit Body, Iron, Gray, NEMA 3 Seal, Wet Location Suitable
- MPN: LL17
- UPC: 783936011103
- PPN: HBL-LL17
- UNSPSC: 39131708
CAD
$45.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1/2" LL Hub, Iron Duraloy 7 Conduit Body
Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 5.5 in
- Length
- 6.88 in
- Type
- Conduit Body
- Weight
- 0.9 lb.
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- LL
- Material
- Polyester, Fiberglass Reinforced
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- NAICS Code
- 3359323110
Dimensions6.88 in x 3.75 in x 5.5 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
FinishPowder Epoxy Paint
Hub Size1/2"
Special FeaturesIntermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Width3.75 in
Engineering Drawing 1 Display TextLL17 Engineering Drawing
ARRA CompliantContact Manufacturer
Description - InvoiceDURALOY7 1/2" LL COND. BDY FE
Harmonization Code7307110030
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging0.9
UL File NumberE3397
SeriesDuraloy 7 Series
BOX SIZE4.125x11.875x7.375 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936011103
Master Pack DescriptionEach
