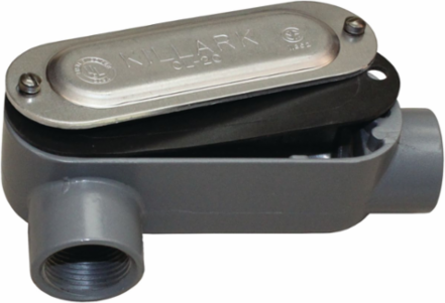

Killark OLR-5CG Aluminum Conduit Body with Cover & Gasket, 1-1/2 Inch Hub Size, 31 Cubic Inches Volume
Killark OLR-5CG Aluminum Conduit Body with Cover & Gasket, 1-1/2 Inch Hub Size, 31 Cubic Inches Volume
- MPN: OLR-5CG
- UPC: 783936480107
- PPN: HBL-OLR-5CG
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$218.31/ EA
Description
O Series/Duraloy 5 Series - Aluminum Conduit Body With Cover And Gasket- LR Type - Hub Size 1-1/2 Inch - Volume 31.0 Cubic Inches
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 31 cu. in.
Specifications
Specifications
- Country of Origin
- United States
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 4 in
- Length
- 9 in
- Type
- Conduit Body With Cover & Gasket
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- BODY,CVR,GASK 1-1/2" LR AL
- Harmonization Code
- 7609000000
- Lead Time
- 5 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LR
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 15.680 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 8
Dimensions9 in x 4 in x 4 in
ColorGray
Hub Size1-1/2"
Special FeaturesTapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 31 cu. in.
Width4 in
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging1.65
MaterialAluminum, Copper Free (less than 4/10 of 1%)
BOX SIZE4.000x9.000x4.000 (in)
Carton - Number of Sub Packs8
Carton - SCC-14 Next Lower Level Sub Pack00783936480107
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
