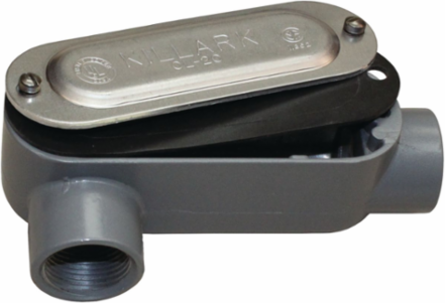

Killark OLR-0CG Aluminum Conduit Body with Cover & Gasket, LR Type, Hub Size 4 Inch, Volume 324 Cubic Inches
Killark OLR-0CG Aluminum Conduit Body with Cover & Gasket, LR Type, Hub Size 4 Inch, Volume 324 Cubic Inches
- MPN: OLR-0CG
- UPC: 783936013930
- PPN: HBL-OLR-0CG
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1390.03/ EA
Description
O Series/Duraloy 5 Series - Aluminum Conduit Body With Cover And Gasket- LR Type - Hub Size 4 Inch - Volume 324.0 Cubic Inches
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 324 cu. in.
Specifications
Specifications
- Country of Origin
- MX
- Each - Width
- 7.125 in
- Color
- Gray
- Special Features
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 324 cu. in.
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- LR TYPE COND BODY, CVR, GASKET 4" AL
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LR
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Width7.125 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Hub Size4"
TypeConduit Body With Cover & Gasket
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging10.24
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Carton - SCC-14 Next Lower Level Sub Pack00783936013930
