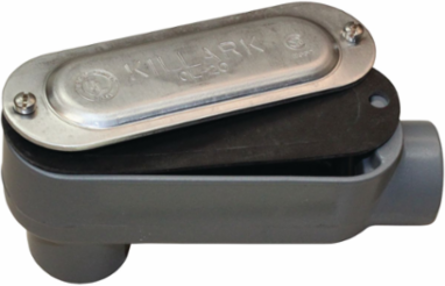

Killark OLB-1MCG Malleable Iron Conduit Body LB Type 1/2 Inch Hub with Cover and Gasket, 4 Cu. In. Volume
Killark OLB-1MCG Malleable Iron Conduit Body LB Type 1/2 Inch Hub with Cover and Gasket, 4 Cu. In. Volume
- MPN: OLB-1MCG
- UPC: 783936050010
- PPN: HBL-OLB-1MCG
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$86.22/ EA
Description
O Series/Duraloy 5 Series - Malleable Iron Conduit Body With Cover And Gasket - LB Type - Hub Size 1/2 Inch - Volume 4.0 Cubic Inches
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 4 cu. in.
Specifications
Specifications
- Country of Origin
- India
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 5.75 in
- Length
- 7.5 in
- Type
- Conduit Body With Cover & Gasket
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- DURALOY 5 K-PAK SERIES 1/2" TYPE LB
- Harmonization Code
- 7307199060
- Lead Time
- 70 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LB
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.900 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
Dimensions7.5 in x 5.625 in x 5.75 in
ColorGray
Hub Size1/2"
Special FeaturesTapered threaded hubs (NPT). Raintight. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 4 cu. in.
Width5.625 in
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
Gross Weight with Packaging0.98
MaterialIron
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936050010
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
