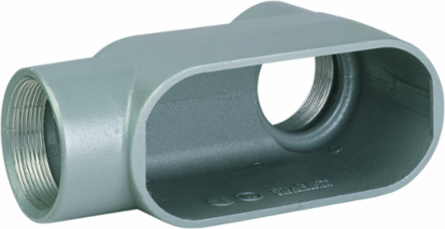

Killark LB17 Duraloy 7 Series Iron Conduit Body LB Type 1/2 Inch Hub Size Volume 4.0 Cubic Inches
- MPN: LB17
- UPC: 783936011004
- PPN: HBL-LB17
- UNSPSC: 39131708
CAD
$45.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Duraloy 7 Series - Iron Conduit Body - LB Type - Hub Size 1/2 Inch - Volume 4.0 Cubic Inches
Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 3 in
- Length
- 5 in
- Type
- Conduit Body
- Weight
- 0.88 lb.
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- LB
- UL Listed
- No
- Series
- Duraloy 7 Series
- BOX SIZE
- 4.125x11.875x7.375 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936011004
- Master Pack Description
- Each
- NAICS Code
- 3359323110
Dimensions5 in x 2 in x 3 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
FinishPowder Epoxy Paint
Hub Size1/2"
Special FeaturesIntermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Width2 in
Engineering Drawing 1 Display TextLB17 Engineering Drawing
ARRA CompliantContact Manufacturer
Description - InvoiceOUTLET BODY 1/2" FE LB TYPE
Harmonization Code7307110030
Lead Time12 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging0.88
UL File NumberE3397
MaterialIron
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.400 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Standard Package Quantity20
