Killark

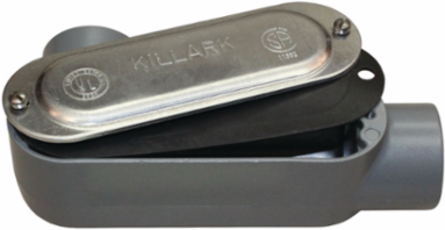

Killark OLL-3MCG Malleable Iron Conduit Body Type LL With Cover & Gasket, Hub Size 1 Inch, Volume 12 Cu. In.

Malleable Iron Conduit Body Type LL With Cover & Gasket, Hub Size 1 Inch, Volume 12 Cu. In.
  • MPN: OLL-3MCG
  • UPC: 783936050133
  • PPN: HBL-OLL-3MCG
  • UNSPSC: 39131708

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$141.54/ EA

Description

O Series/Duraloy 5 Series - Malleable Iron Conduit Body With Cover And Gasket - LL Type - Hub Size 1 Inch - Volume 12.0 Cubic Inches

Features

  • Up to date with 419 and tapered hubs specifications
  • Type 4 when used with neoprene gasket and cover
  • Malleable iron suitable for use in concrete
  • Interchangeable with competitive cover/gasket
  • Staked stainless steel screws on stamped covers
  • 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
  • Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
  • For conduit body packaged with cover and gasket, add CG to the catalog number
  • Tapered threaded hubs (NPT). Raintight. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 12 cu. in.

Specifications

Specifications

Country of Origin
India
Application
To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Hub Size
1"
Type
Conduit Body With Cover & Gasket
Class Code
D30
Freight Class Code
06316009
Image Actual Or Representative
R
MSDS Flag
No
Returnable Indicator
No
Gross Weight with Packaging
1.69
Material
Iron
BOX SIZE
0.000x0.000x0.000 (in)
Carton - Number of Sub Packs
5
Carton - SCC-14 Next Lower Level Sub Pack
00783936050133
Master Pack Description
Each
Width2.563 in
ColorGray
Special FeaturesTapered threaded hubs (NPT). Raintight. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 12 cu. in.
ARRA CompliantContact Manufacturer
Description - InvoiceDURALOY 5 K-PAK SERIES 1" TYPE LL
Harmonization Code7307199060
Lead Time70 wk
Order Multiple1 EA
Sub Class CodeD30D230
Hub PatternLL
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.450 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA

Certifications
