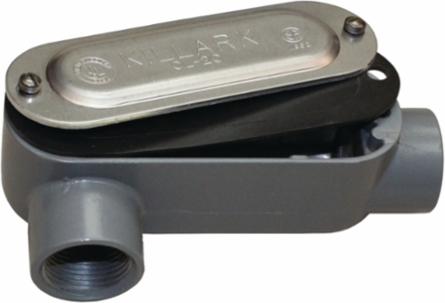

Killark OLR-5MCG Malleable Iron LR Type Conduit Body, Hub Size 1-1/2 Inch, Volume 31.0 Cubic Inches
- MPN: OLR-5MCG
- UPC: 783936050256
- PPN: HBL-OLR-5MCG
- UNSPSC: 39131708
CAD
$265.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
O Series/Duraloy 5 Series - Malleable Iron Conduit Body With Cover And Gasket - LR Type - Hub Size 1-1/2 Inch - Volume 31.0 Cubic Inches
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 31 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Finish
- Powder Epoxy Paint
- Special Features
- Tapered threaded hubs (NPT). Raintight. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 31 cu. in.
- Cover Type
- Stamped
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- DURALOY 5 K-PAK SERIES 1 1/2" TYPE LR
- Harmonization Code
- 7307199060
- Lead Time
- 70 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LR
- Series
- O Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Number of Sub Packs
- 2
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936050256
- Master Pack Description
- Each
Width3.500 in
ColorGray
Hub Size1-1/2"
TypeConduit Body With Cover & Gasket
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
Gross Weight with Packaging3.51
MaterialIron
Base Unit of MeasureEA
Carton - Gross Weight per Pack7.020 lb.
Carton - Pack DescriptionCarton
Carton - Total Units2 EA
NAICS Code3359323110
