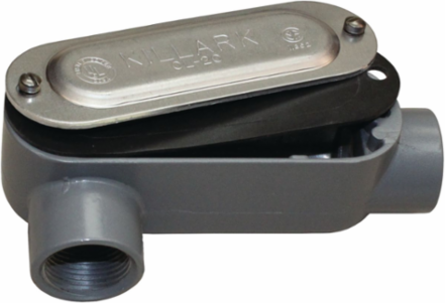

Killark OLR-3MCG Malleable Iron Conduit Body with Cover and Gasket, 1 Inch Hub Size, Volume 12 Cu. In.
- MPN: OLR-3MCG
- UPC: 783936050232
- PPN: HBL-OLR-3MCG
- UNSPSC: 39131708
CAD
$141.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
O Series/Duraloy 5 Series - Malleable Iron Conduit Body With Cover And Gasket - LR Type - Hub Size 1 Inch - Volume 12.0 Cubic Inches
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 12 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Hub Size
- 1"
- Type
- Conduit Body With Cover & Gasket
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- No
- Gross Weight with Packaging
- 1.67
- Material
- Iron
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936050232
- Master Pack Description
- Each
Width2.563 in
ColorGray
Special FeaturesTapered threaded hubs (NPT). Raintight. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 12 cu. in.
ARRA CompliantContact Manufacturer
Description - InvoiceDURALOY 5 K-PAK SERIES 1" TYPE LR
Harmonization Code7307199060
Lead Time70 wk
Order Multiple1 EA
Sub Class CodeD30D230
Hub PatternLR
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.350 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
NAICS Code3359323110
Certifications
- EU RoHS Indicator
- Contact Manufacturer
