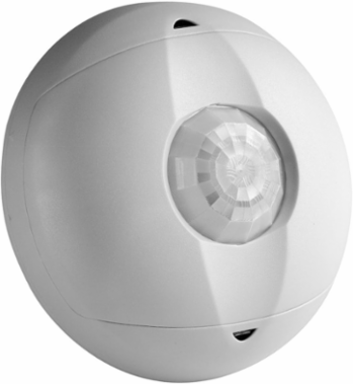

Leviton OSC15-I0W Ceiling Mount Occupancy Sensor, 1500 Sq Ft, 24VDC, White
- MPN: OSC15-I0W
- UPC: 078477180587
- PPN: LEV-OSC15-I0W
CAD
$198.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Occupancy Sensor lighting control, Ceiling Mounted, 24VDC, 10mA power consumption, 1500 sq ft, 360 degree (major motion: 40' diameter, no minor motion), red LED, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', PIR, cUL/NOM/ANCE listed, CEC Title 24 compliant. Color: off white
Features
- Small Size: Installed sensor appears almost invisible.
- Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
- Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
- Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
- Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
- Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
- Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
- Excellent Warranty: 5-Year Limited warranty.
- Typical Applications: Copy Room, Open Office, Storage Room, Lounge, Non-Partitioned Restroom, Vending Room, General Work Space, or Hallway
- The all-digital & microprocessor based OSCXX-I occupancy sensor is the most advanced infrared ceiling sensor available. Self-calibrating sensitivity and timer allow the installer to “install & forget.” Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Additional
| Coverage Area | 1500 sq ft |
|---|---|
| Sensor Type | Ceiling Mount Passive Infrared (PIR) |
| Motion Detection Range | 40 ft diameter (major motion only) |
| Test Mode Duration | 6 sec for 15 min with auto exit |
| Mounting Height | 8-10 ft |
| Output | 24 VDC active high logic control signal with short circuit protection |
| Light Sensor Range | 20 to 3,000 Lux (requires grey wire) |
| Response Feature | Auto adapting, walk-through |
| Compliance | cUL/NOM/ANCE Listed, CEC Title 24 Compliant |
| Listing Rating | IP42 Rated |
| Country of Origin | Please Contact Customer Service |
| Voltage | 24 VDC |
|---|---|
| Detection Angle | 360 degrees |
| Time Delay | 30 sec to 30 min |
| Coverage Area | 1500 sq ft |
| Power Consumption | 10 mA |
| Memory | Non-volatile memory retains settings during power outages |
| Infrared Sensitivity Range | 0 to 100% (factory setting 75%) |
| Color | White |
| Energy Codes Compliance | IECC, ASHRAE 90.1, 2022 Title 24 Part 6 |
| RoHS Compliant | No |
| Product Line | OSC15 |
