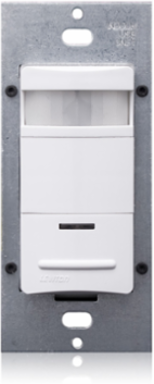

Leviton ODS10-I3W Occupancy Sensor PIR Wall Switch 347VAC 180° Coverage White
- MPN: ODS10-I3W
- PPN: LEV-ODS10-I3W
CAD
$110.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Occupancy Sensor PIR Wall Switch 347VAC 180° Coverage White
Features
- Fits in standard wallbox and replaces single-pole wall switch. Gangable with other units.
- Low-profile design eliminates obtrusive “scanning-device” look. Elegant Decora wallplates complement any interior for sleek aesthetics; uses Decora wallplates and coordinates with Leviton’s popular line of Decora wiring devices.
- 180° field-of-view provides approximately 2100 square feet of coverage suitable for small offices, conference rooms, classrooms, lounges and a variety of commercial areas.
- Convenient pushbutton provides manual-ON/OFF light switching at any time.
- Two dual element PIR sensors used to widen detection range.
- Segmented Fresnel lens provides optimum sensitivity
- and performance. Designed with an extensive “minor motion” area where even slight body movements will be detected.
- Vandal resistant PIR lens.
- Horizontal field-of-view may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the lens. No masking tape required.
- Manual-ON/auto-OFF mode for installations where manual-ON switching is required but auto-OFF switching is still desired for CA Title 20/24 energy savings.
- To comply with CA Title 20, red LED indicator light flashes wh en sensor detects motion to verify detection is active.
- Time Delay adjustment for delayed-OFF time settings of 30 seconds (for walking test), 10 minutes, 20 minutes, and 30 minutes. Allows customized adjustments to maximize energy savings.
- Light Sensor Adjustable Ambient Light Override ranges from approximately 2 foot-candles (20 lux) to 500+ foot-candles (5000+ lux) to prevent lights from turning ON automatically during periods of ample natural light, increasing energy savings.
- Light sensor enables the load hold-OFF feature once level has been set.
- Vacancy confirmation - when the time out expires and the lights turn OFF a 30 second vacancy confirmation exists to turn the lights back ON.
- False detection circuitry.
- Presentation Mode feature for slide or film presentations
- allows push buttons to turn lights OFF and keep them OFF while the room is occupied.
- Compatible with both electronic and magnetic ballasts.
- Relay switches at the zero crossing point of the
- AC power curve to ensure maximum contact life and compatibility with electronic ballasts.
- Exclusive Leviton H.I.S. Circuitry. Specifically designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service.
- No neutral design is optional for retrofit applications.
Documentation & Downloads
Specifications
Additional
- Voltage
- 347 VAC
- Frequency
- 50/60Hz
- Technology
- Passive Infrared (PIR)
- Switch Type
- Single-Pole
- Install Depth
- 1.35 in
- Color
- White
- Operating Temperature
- 0°C to 50°C
- Storage Temperature Range
- 14°F to 185°F (-10°C to 85°C)
- Country of Origin
- China
Load Rating10A, 3470 Watts/VA Incandescent and Fluorescent, 1/4 HP Motor
Coverage2100 sq.ft.
Sensor TypeWall Switch
SizeHeight 4.06 in, Width 1.75 in, Depth 1.83 in
Install Height2.60 in
Neutral Wire ConnectionNot Required
Relative Humidity20% to 90% non-condensing
California Title 24No
