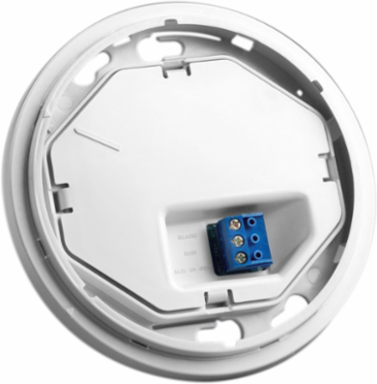

Leviton OPB15-DW Occupancy Sensor, Power Base, Adapter
- MPN: OPB15-DW
- UPC: 078477299678
- PPN: LEV-OPB15-DW
CAD
$87.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Line Voltage to Low Voltage Power Base Adaptor. 15A, 120-230-277VAC 50/60Hz. For use with Leviton 24VDC Low Voltage ceiling mount and wall mount occupancy sensors only. USMCA compliant. RoHS Compliant. Color: White
Features
- Converts any Leviton low-voltage ceiling sensor to line-voltage (Patent-Pending)
- Mounts to standard 2.125 inch deep X 4 inch octagon or 2.125 inch deep X 4 inch foursquare electrical boxes (foursquare box requires a two-gang mud ring)
- Simple installation
- Ideal for retrofit or new construction applications
- Zero crossing circuitry provides increased durability
- The OPB15 Power Base is a unique, 15 Amp power pack for low-voltage occupancy sensors packaged in a housing that forms the mounting base of these products. This allows for installations where only line-voltage circuitry is available while providing the full-line of Leviton low-voltage ceiling sensors to meet every application. The OPB15 Power Base provides all of the same features as the standard OSP Power Pack Series with a full rated 15 amp, zero cross relay with 24 VDC supply. The Power Base Adapter converts any Leviton low voltage ceiling occupancy sensor to a self-contained, line voltage unit, with 15 Amp, 120-277V load capacity.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| Listings | UL and cUL Listed, NOM, CEC Title 24 |
|---|
Mechanical Specifications
| Construction | High-impact, injection-molded plastic |
|---|---|
| Size | Width 4.5", Depth 1.75" |
| Mounting Type | Ceiling Mount |
|---|---|
| Title 24 Compliant | Yes |
Product Features
| Application | Lavatories, Remodels, Energy conservation retrofits, Any installation with limited access for low voltage wiring installation, Surface mount boxes |
|---|---|
| Feature | Convert Low Voltage Ceiling Mount Occupancy/Vacancy Sensors to Line Voltage |
| Mounting | Ceiling Mount |
| Sensor Type | Accessory |
| Color | White |
|---|---|
| Grade | Commercial |
| Product Line | OPB15 |
Warranty
| Warranty | 5-Year Limited |
|---|
Environmental Specifications
| Operating Temperature | 0° to 40°C (32° to 104°F) |
|---|---|
| Storage Temperature Range | 14° to 185°F (-10° to 85°C) |
| Relative Humidity | 0% to 90% non-condensing |
|---|
Electrical Specifications
| Frequency | 50/60Hz |
|---|---|
| Output Voltage | 24 VDC |
| Voltage | 120-277 VAC |
| Load Rating | 15A Incandescent, Electronic or Magnetic Fluorescent Ballast; 3/4 HP at 120V |
|---|---|
| Power Consumption | Lights On: 120V - 1.58W, 277V - 2.34W - Lights Off: 120V - .27W, 277V - 1.04W |
| Wiring | Line-Black, Load-Blue, White-Neutral |
Type
| Product Type | Power Base |
|---|
