SolaHD

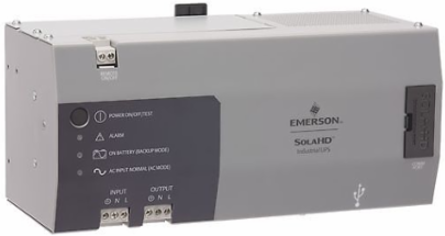

SolaHD SDU850B OFFLINE UPS 850VA 120V DIN B-SERIES

OFFLINE UPS 850VA 120V DIN B-SERIES
  • MPN: SDU850B
  • PPN: SHD-SDU850B

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1942.93/ EA

Description

OFFLINE UPS 850VA 120V DIN B-SERIES

Specifications

Capacity
850 VA / 510 W
Output Voltage
120 V Simulated sinewave
Input Current
8 A
Typical Back-Up Time
1:30 min full load / 7:00 min half load
Nominal Voltage
120 V
Dimensions
4.89 x 10.91 x 5.22 in (124.2 x 277.0 x 132.7 mm)
Battery Type
Sealed, maintenance-free, lead acid
Ambient Humidity
0-95% non-condensing
Power Factor0.6
Transfer Time<8 ms
Overload ProtectionShutdown at 105% for 20 s, 120% for 10 s, 130% for 3 s, auto-recovery
Operating Temperature Range0 to 50 °C
Frequency50 or 60 Hz
Weight11.5 lbs (5.2 kg)
Typical Recharge Time8 hours
Audible Noise<40 dBA at 1 meter
