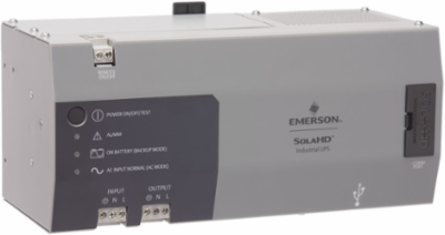

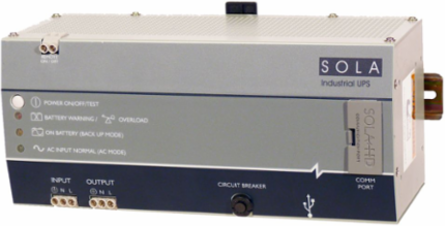

SolaHD SDU850A DIN Rail UPS - 850 VA, 120/230 Vac, Compact Design, Wide Temperature Range
- MPN: SDU850A
- PPN: SHD-SDU850A
CAD
$1798.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The SDU AC - A Series DIN Rail UPS System combines an industry leading compact design with a wide operation temperature range, enhanced communications and unique installation options. The SDU-A Series provides economical protection from damaging impulses and power interruptions. These units include easy to wire screw terminations for critical devices needing battery back-up such as computer based control systems.
Features
- cRUus, CE, RoHS Compliant, Federal Comminucations Commission, ODVA Compliant
- Lightweight, compact industrial design
- Communications port for optional Industrial Ethernet protocols or discrete communication cards
- USB communication port
- Wide operation temperature range and cold start capability
- Remote turn-on and shut-off capabilities
- Simulated sinewave output
- Software and cable included for easy installation
- Panel/wall mounting brackets (optional)
Documentation & Downloads
Specifications
Key Specifications
- Capacity (VA/W)
- SDU 500A(-5): 500/300; SDU 850A(-5): 850/510
- Typical Back-up Time (minutes, full load)
- SDU 500A(-5): 4; SDU 850A(-5): 2
- Hertz
- 50 or 60 Hz
- Nominal Voltage Range
- 120 or 230 Vac
- Operating Temperature
- 0°C to +50°C
- Mounting
- DIN Rail TS35/7.5 or TS35/15 or chassis-mounted
Input VoltageSDU 500A/850A: 120 Vac; SDU 500A-5/850A-5: 230 Vac
Audible Noise< 40dBA (beyond 1 meter from surface)
Input Voltage Range120 V (+10%, -20%) or 230 V (+/- 15%)
Number of PhasesSingle Phase
Output Voltage Range120 or 230 Vac (Simulated Sinewave)
