Schneider Electric NSYSDR200BD One symmetric mounting rail perforated 35x7.2 mm L2000 mm type B, Order by Multiples of 10 units

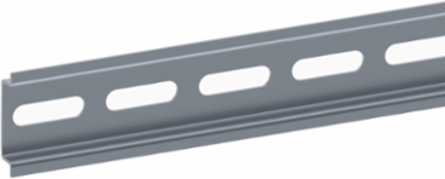

One symmetric mounting rail perforated 35x7.2 mm L2000 mm type B, Order by Multiples of 10 units
  • MPN: NSYSDR200BD
  • PPN: SCH-NSYSDR200BD

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$20.86/ EA

    Description

    One symmetric mounting rail perforated 35x7.2 mm L2000 mm type B, Order by Multiples of 10 units

    Specifications

    Offer Sustainability

    China Rohs Regulation
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP100104EN
    Toxic Heavy Metal Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of SvhcYes

    Specifications

    Type Of Rail
    symmetrical DIN
    Accessory / Separate Part Category
    mounting accessory
    Product Or Component Type
    rail
    Device Application
    multi-purpose
    Range
    Spacial
    Range CompatibilitySpacial || Thalassa
    Quantity Per Setset of 10
    Device Composition1 rail
    Device Short NameTR

    Complementary

    Adjustment
    pitch 25 mm || continuous adjustment
    Width
    nominal 35 mm
    Material
    galvanised steel
    Thickness
    1 mm
    Length2000 mm
    Heightnominal 7.2 mm
    Surface Finishperforated
    Fixing Modeby fixing element - structure of enclosure

    Contractual warranty

    Warranty
    18 months
