Square D

Square D 9421LW1 Circuit breaker accessory, PowerPacT M/P, handle, 8in, 7.2in to 11.625in shaft mounting, Type L

Circuit breaker accessory, PowerPacT M/P, handle, 8in, 7.2in to 11.625in shaft mounting, Type L
  • MPN: 9421LW1
  • UPC: 785901801207
  • PPN: SCH-9421LW1

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$616.86/ EA

Description

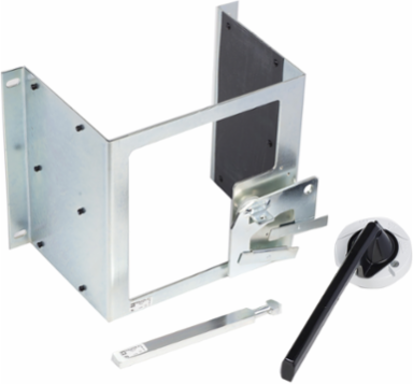

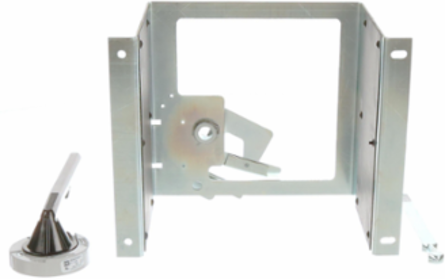

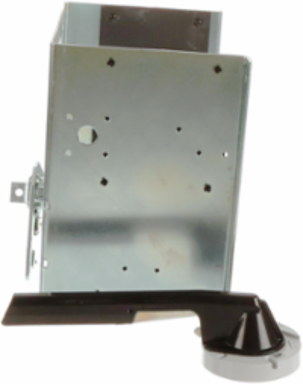

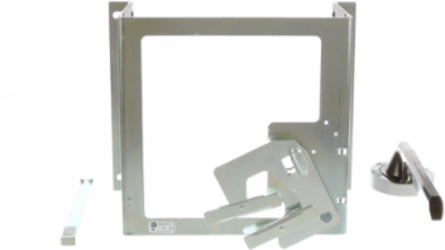

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This mechanism is for PowerPact M and PowerPact P circuit breakers. Circuit breakers can be 3 pole with a frame size of 1200 A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a standard shaft. The mounting depth of this kit is 9.00 to 12.50 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Kit is UL component recognized and CSA certified.

Specifications

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Mercury Free
Yes
Eu Rohs Directive
Compliant with Exemptions
Halogen Content Performance
Halogen free plastic parts product
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

Environmental

Product Compatibility
NEMA 1/3R/12 enclosure

Complementary

Shaft Type
standard
Length8 in

Specifications

Range Of Product
9421L
Product Or Component TypeCircuit Breaker Mechanism

Downloads
