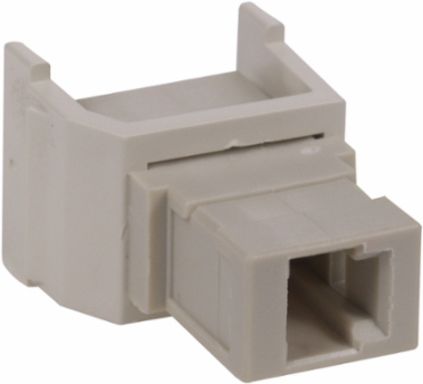

Hubbell Premise Wiring SFMTRJ OptiChannel MT-RJ Keystone Adapter 0.58" X 0.76", Office White
Hubbell Premise Wiring SFMTRJ OptiChannel MT-RJ Keystone Adapter 0.58" X 0.76", Office White
- MPN: SFMTRJ
- UPC: 662620825878
- PPN: HBL-SFMTRJ
- UNSPSC: 43223310
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$23.91/ EA
Description
OptiChannel Keystone Adapter, MT-RJ Feed, Single Mode/Multi Mode, Office White.
Features
- Snap Fit
- Office White Housing
- Standard
- MT-RJ
- Office White Adapter
- Standard Product
Specifications
Specifications
- Country of Origin
- Taiwan
- Width
- 0.800 in
- Size
- .58" X .76"
- Color
- Office White
- Insertion Loss
- 0.75 dB
- Repeatability
- 0.1 dB
- Service Life
- 500 matings
- Standard
- Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-12
- Temperature Rating
- 0C to 70C
- Mounting Type
- Standard
- Class Code
- A68
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- FM347;SFMTRJLA
- Material - Mounting Hardware
- Snap-In, Keystone
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
- Each - Pack Description
- Each
Color - HousingOffice White
Industry Standard(s)Telcordia GR-326-CORE;TIA-568-C.3;TIA-604 FOCIS-12
ApplicationData Outlet
Fiber Size125 Micron
MountingStandard
Return Loss26
Special FeaturesStandard Product
Sub BrandOptiChannel
ConnectivityReceptacle
StyleMT-RJ
Description - InvoiceFIBER, SNAP-FIT,MT-RJ,BE,OW
Harmonization Code8536700000
MSDS FlagNo
Sub Class CodeHPWALL2
MaterialBronze, Phosphor
BOX SIZE4.437x3.500x6.550 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack662620825878
Case Weight32.500 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
