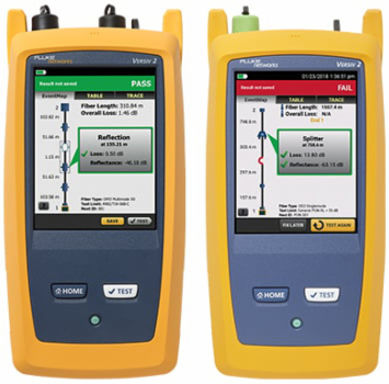

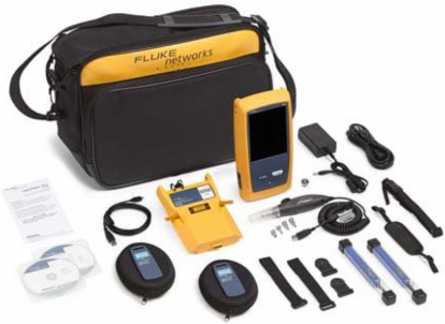

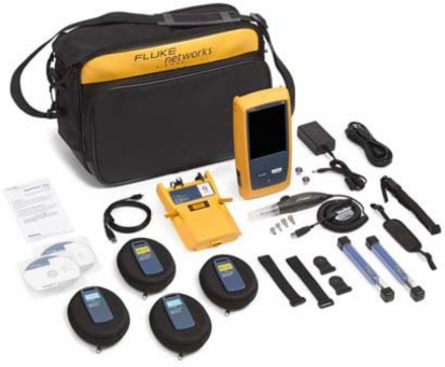

Fluke OFP-SM OptiFiber® Pro OTDR Family
- MPN: OFP-SM
- UPC: 754082093909
- PPN: FLU-OFP-SM
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for Enterprise, Datacenter, Outside Plant and PON Fiber As fiber networks evolve, the need to test in more locations has increased. OTDRs are now needed for: FTTx Enterprise OSP PON POLAN Many OTDRs designed for fiber troubleshooting are designed for carrier and contain cumbersome and complicated features. The OptiFiber Pro OTDR family is the first class of OTDRs that is built with features and usability for both the enterprise network engineers, and cable installers working in both enterprise and OSP environments.
Documentation & Downloads
Specifications
Key OptiFiber Pro HDR Specification
| Wavelengths | 1550 nm +/- 20 nm || 1490 nm +/- 20 nm || 1625 nm +/- 20 nm || 1310 nm +/- 25 nm |
|---|---|
| OTDR Port Connector | Cleanable APC ferrule with removable SC adapter |
| Attenuation dead zone2 | 4m (typical) |
| Max distance range setting | 260 km |
| Reflectance range4 | -14 to -70 dB (typical) |
| Sampling points | Up to 129000 |
| Distance uncertainty | +/-(1 + 0.0005*distance + 0.5*resolution) |
| Reflectance uncertainty | ±2 dB |
| Laser Classification | Class 1 CDRH Complies to EN 60825-2, 3rd Edition |
| Compatible fiber types | Singlemode |
|---|---|
| Event dead zone 1 | 0.7 m (typical) |
| PON dead zone3 | 30 m (typical) |
| Dynamic range 4, 5 | 1310 nm: 42 dB (typical || 1310 nm: 42 dB (typical) || 1625 nm: 40 dB (typical) || 1490 nm: 41 dB (typical) || 1550 nm: 41 dB (typical) |
| Sampling resolution | 3 cm to 2 m |
| Pulse widths (nominal) | 5, 10, 30, 50, 100, 300, 500, 1000, 3000, 5000, 10000, 20000 ns |
| Linearity | ± 0.03 dB/dB |
| Test Time (per wavelength) | Manual PON setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 seconds/wavelength || Manual setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 seconds/wavelength || Quick test setting: 3 seconds/wavelength (typical) || Auto setting: 5 seconds/wavelength (typical) || Best resolution setting: 5 to 180 seconds/wavelength || Auto PON setting: 10 seconds/wavelength (typical) |
| Calibration Period | 1 year |
Additional key specifications
| Magnification | ~ 200X with OptiFiber Pro Display |
|---|---|
| Power source | Versiv mainframe |
| Minimum detectable particle size | 0.5 µm |
| Weight | Mainframe with module and battery: 3 lbs, 5 oz (1.28 kg) |
| Certifications | CE (when used with the mainframe) |
| Output power | 316 µW (-5 dBm) = peak power = 1.0 mW (0 dBm) |
| Spectral width (RMS) | ±3 nm |
| Connector adapter | 2.5 mm universal |
| Battery | Lithium ion battery pack, 7.2 volts |
| Integrated Wi-Fi | Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz) |
| Tester On | Six hours to charge from 10% to 90% capacity with the tester on |
| Storage Temperature | -10ºC to +60ºC |
| Storage altitude | 12,000 m |
| Light source | Blue LED |
|---|---|
| Field of View (FOV) | Horizontal: 425 µm || Vertical: 320 µm |
| Dimensions | Mainframe with module and battery: 2.625 in x 5.25 in x 11.0 in ( 6.67 cm x 13.33 cm x 27.94 cm) |
| Temperature range | Storage: -4°F to +158°F (-20°C to +70°C) || Operating: 32°F to 122°F (0 °C to +50 °C) |
| On/Off control | Mechanical switch and a button on the touch screen |
| Operating wavelength | 650 nm nominal |
| Output modes | Continuous wave Pulsed mode (2 Hz to 3 Hz blink frequency) |
| Laser safety (classification) | Class II CDRH Complies to EN 60825-2 |
| Battery life | Eight hour Auto OTDR operation, dual wavelength, no video probe connected, 150 m of fiber |
| Tester Off | Four hours to charge from 10% to 90% capacity |
| Operating temperature* | -10ºC to 45ºC |
| Operating altitude | 3200 m (10,500 ft) with ac adapter || 4,000 m (13123 ft) |
| EMC | EN 61326-1 |
Key OptiFiber Pro OTDR specifications
| Wavelengths | 1300 nm +35/-15 nm || 850 nm +/- 10 nm || 1550 nm +/- 30 nm || 1310 nm +/- 25 nm || 1310 nm +/- 25 nm |
|---|---|
| Event dead zone 1 | 1550 nm: 0.6 m typical || 850 nm: 0.5 m typical || 1310 nm: 0.6 m typical || 1310 nm: 0.6 m typical || 1300 nm: 0.7 m typical |
| Dynamic range 3, 5, 6 | 1310 nm: 32 dB typical || 1310 nm: 32 dB typical || 1300 nm: 30 dB typical || 850 nm: 28 dB typical || 1550 nm: 30 dB typical |
| Distance measurement range 4, 5, 7, 8, 9, 10 | 1310 nm: 80 km || 1300 nm: 35 km || 1310 nm: 80 km || 850 nm: 9 km || 1550 nm: 130 km |
| Sample resolution | 3 cm to 400 cm |
| Test time (per wavelength) | Best resolution setting: 5 to 180 sec || MM – 1 sec (typical at 850 nm) MM – 7 sec (max) || DataCenter OTDR setting: || Auto setting: 10 sec (typical) || SM – 5 sec (typical) || MM – 2 sec (typical) || FaultMap setting: || -3, 5, 10, 20, 40, 60, 90, 120, 180 sec SM - 3, 5, 10, 20, 40, 60, 90, 120, 180 sec || FaultMap setting: 10 sec (typical), 180 sec (max) || SM – 20 sec (typical) SM – 40 sec (max) || Auto setting: || DataCenter OTDR setting: 1 sec (typical at 850 nm), 7 sec (max) || FaultMap setting: 2 sec (typical), 180 sec (max) || SM - 10 sec (typical), SM - 180 sec (max) || MM – 5 sec (typical) || Auto setting: 5 sec (typical) || Quick test setting: || MM – 2 to 180 sec M || Quick test setting: 5 sec (typical) || MM - 2 sec (typical), MM - 180 sec (max) || Manual setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 sec || Best resolution setting: || || Auto setting: || Best resolution setting: 2 to 180 sec || DataCenter OTDR setting: 20 sec (typical), 40 sec (max) || SM – 5 to 180 sec || SM – 10 sec (typical) || Manual setting: || Quick test setting: 2 sec (typical) |
| Compatible fiber types | Singlemode || Singlemode || 62.5/125 µm || 50/125 µm |
|---|---|
| Attenuation dead zone 2 | 1310 nm: 3.6 m typical || 850 nm: 2.5 m typical || 1310 nm: 3.6 m typical || 1550 nm: 3.7 m typical || 1300 nm: 4.5 m typical |
| Max distance range setting | SM: 130 km || 40 km || 130 km || MM: 40 km |
| Reflectance range 4, 5 | 1300 nm: -14 dB to -62 dB (typical) || 850 nm: -14 dB to -57 dB (typical) || 1310 nm: -14 dB to -65 dB (typical) || 1550 nm: -14 dB to -65 dB (typical) || 1310 nm: -14 dB to -65dB (typical) |
| Pulse widths (nominal) | 1300 nm: 3, 5, 20, 40, 200, 1000 ns || 1310/1550 nm: 3, 10, 30, 100, 300, 1000, 3000, 10000, 20000 ns || 1310/1550 nm: 3, 10, 30, 100, 300, 1000, 3000, 10000, 20000 ns || 850 nm: 3, 5, 20, 40, 200 ns |
