Fluke CFP-Q-ADD CertiFiber® Pro Optical Loss Test Set

MPN: CFP-Q-ADD
UPC: 754082105275
PPN: FLU-CFP-Q-ADD

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

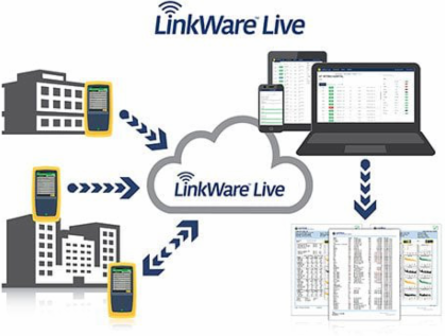

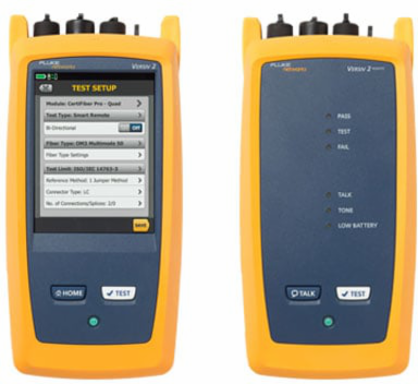

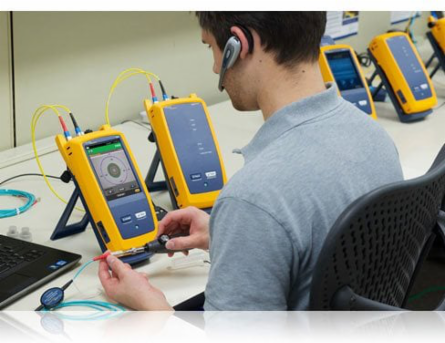

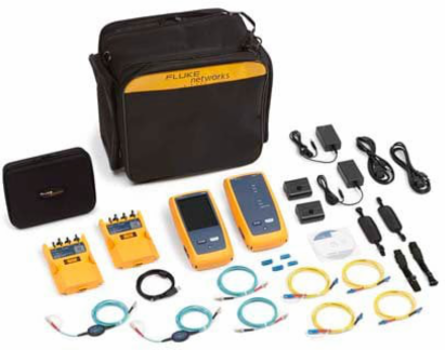

The CertiFiber Pro Optical Loss Test Set improves the efficiency of fiber optics certification. The Taptive user interface simplifies set-up, eliminates errors and speeds troubleshooting. A set reference wizard ensures correct reference setting and eliminates negative loss errors. Built on the future-ready Versiv platform, CertiFiber Pro Optical Loss Test Set (OLTS) provides merged Tier 1 (Basic) / Tier 2 (Extended) testing and reporting when paired with OptiFiber Pro module. A convenient quad module supports both singlemode and multimode and is multimode Encircled Flux compliant. Copper certification and Wi-Fi Analysis and Ethernet troubleshooting modules are also available. Analyze test results and create professional test reports using LinkWare Management Software. CertiFiber Pro’s Optical Loss Test Set (OLTS) double ended fiber optic inspection capability allows you to inspect and certify fiber optic connector end-faces at both ends of your fiber link in less than a second so you can get your job done the first time. This double ended fiber optic inspection capability provides automated PASS/FAIL certification, takes the guess work out of fiber inspection so anyone can be a fiber expert.

Documentation & Downloads

Specifications

Loss/Length Specifications

Testing Speeds (excludes referencing times)	Loopback mode: ≤ 2 seconds (2 wavelengths, one direction auto wavelength detection) \|\| Smart Remote mode: < 3 seconds (2 wavelengths, one direction, auto wavelength detection) \|\| Far End Source mode: ≤ 2 seconds (2 wavelengths, one direction auto wavelength detection)
Launch Condition1,2	Encircled Flux compliant to TIA-526-14-B, ISO/IEC 14763-3 and IEC 61280-4-1
Source Type and Wavelengths	Fabry-Perot laser diode 1310 nm ± 20 nm 1550 nm ± 30 nm \|\| LED source 850 nm ± 30 nm 1300 nm ± 20 nm
Length Measurement Accuracy	± 1.5 m plus ± 1 % of length
Output Power Stability3	± 0.05 dB over 8 hours ± 0.03 dB over 15 minutes \|\| ± 0.1 dB over 8 hours ± 0.08 dB over 15 minutes

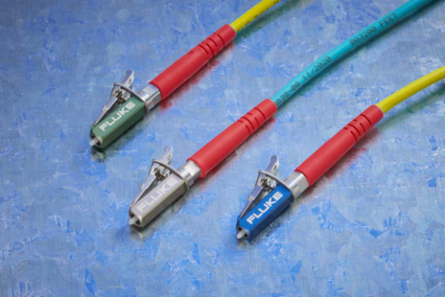

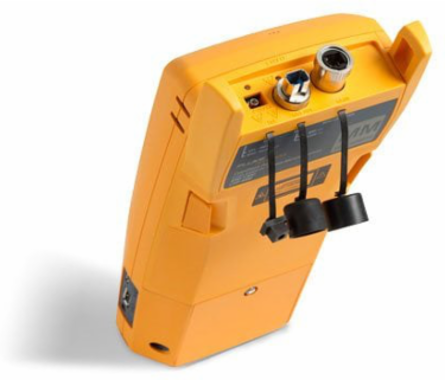

Input/Output Connectors	Interchangeable connector adapter (LC standard, SC, ST, FC, and MDC optional)
Fiber Types Tested	singlemode \|\| 50/125 µm or 62.5/125 µm
Maximum Length Measurement	130 km \|\| 12 km
Output Power (Nominal)	≥ -4 dBm \|\| ≥ -24 dBm with EF-TRC

Selected Specifications

Output Power	>-5 dBm<0 dBmSMF-28 singlemode fiberContinuous waveSC/UPC connector
Output Modes	Continuous wave \|\| Pulsed mode (2 Hz to 3 Hz blink frequency)
Laser Safety	Over operating temperature range \|\| Class II CDRH

Operating Wavelength	650 nm nominal
Connector Adapter	2.5 mm universal

Power Meter Specifications

Input Connector	Interchangeable connector adapter (LC standard, SC, ST, FC, and MDC optional)
Wavelengths	850 nm, 1300 nm, 1310 nm, 1550 nm
Power Measurement Uncertainty1,2	< +/- 5% +/- 32 pW
Re-calibration Period	1 year

Detector Type	InGaAs
Power Measurement Range	0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths)
Measurement Linearity3	< ± 0.1 dB
Integrated Wi-Fi	Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)

Loss/Length Specifications (continued)

Source Wavelengths	850 nm, 1300 nm, 1310 nm, 1550 nm

Power Measurement Uncertainty1, 2	< +/- 5% +/- 32 pW

Environmental Specifications

Operating Temperature	-10° C to 45° C
Operating Relative Humidity % RH without condensation	% RH without condensation \|\| 0 % to 70 %, 95 °F to 113 °F (35° C to 45° C) \|\| 0 % to 90 %, 32 °F to 95 °F (0° C to 35° C)
Shock	1 m drop test with and without module and adapters
Pollution Degree	2
EMC	EN 61326–1

Storage Temperature	-10° C to +60° C
Vibration	Random, 2 g, 5 Hz-500 Hz
Safety	CSA C22.2 No. 1010.1: 1992 \|\| EN 61010-1 1st Edition + Amendments 1, 2
Altitude	Operating: 4,000 m; storage: 12,000 m
