Taymac DOCK320W Outdoor Comforts Weatherproof Deck Outlet Cover Kit, 1-Gang, White, UV-Resistant Polycarbonate
- MPN: DOCK320W
- UPC: 050169995433
- PPN: HBL-DOCK320W
- UNSPSC: 39121522
CAD
$102.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

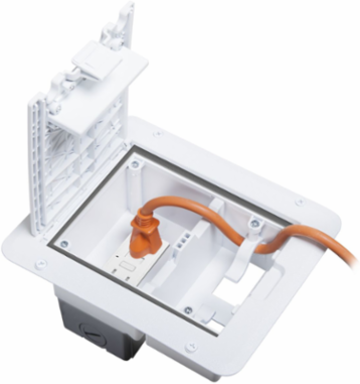

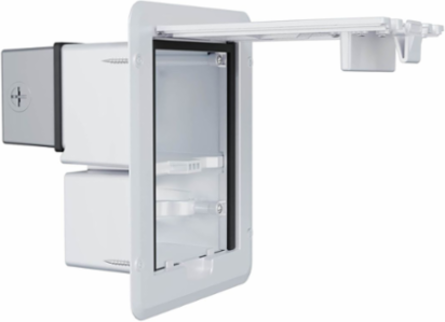

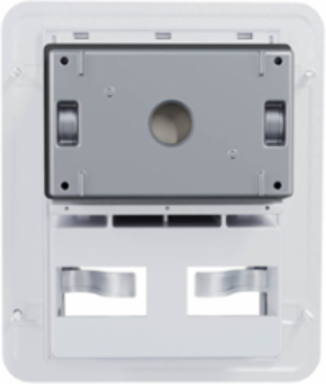

Outdoor Comforts® Weatherproof Deck Outlet Cover & GFCI Kit, White
Features
- One weather/tamper resistant 15A GFCI receptacle
- One weatherproof cover constructed of heavy-duty UV-resistant polycarbonate
- One metal electrical box with ½” threaded outlets and gasket
- Low profile design with beveled edge and slip-resistant texture meets
- ADA standards
- Rain chamber and “drip loop” design provide two levels of in-use protection
- Pre-attached gasket keeps water from entering around self-closing lid
- Cord hooks hold two power cords (up to 16 gauge) in place
- For use on wood or composite raised decks and porches
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Depth
- 5.35 in
- Standard Package
- 4
- Standard
- cULus Listed
- Installation Type
- Raised Platform (Deck)
- Class Code
- D17
- Freight Class Code
- 00062020
- Image Actual Or Representative
- A
- Collection Name
- Outdoor Comforts®
- Construction
- Nonmetallic
- Number of Gang(s)
- 1-Gang
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.196 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 4
- Package Length
- 9.75 in
- Package Width
- 7.2 in
- Pallet - SCC-14 Next Lower Level Sub Pack
- 50050169995438
- Pallet Height
- 35.500 in
- Pallet Weight
- 486.408 lb.
- NAICS Code
- 3359326105
ColorWhite

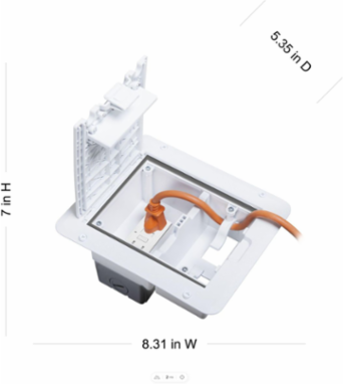

Height7 in
ApplicationOutdoor;In Use
Width8.31 in
Nema RatingNEMA 3R
Description - Invoice1G WP XTR DTY DECK WIU CVR BX GFI WH
Harmonization Code3926909989
Sub Class CodeD17D200
NECCompliant
MaterialPolycarbonate
SeriesOutdoor Comforts® Series
BOX SIZE10.000x14.900x7.500 (in)
Carton - Number of Sub Packs4
Carton - SCC-14 Next Lower Level Sub Pack00050169995433
Package Height3.5 in
Package Weight2.299 lb.
Pallet - GTIN - Package70050169995432
Pallet - Total Units192
Pallet Length43.375 in
Pallet Width43.375 in
Certifications
- Certified Listed
- cULus Listed
