nVent Hoffman P2ALAFB ProLine G2 Lifting Angles, Front-to-Back
- MPN: P2ALAFB
- UPC: 783510336721
- PPN: HOF-P2ALAFB
- UNSPSC: 39121334
CAD
$294.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

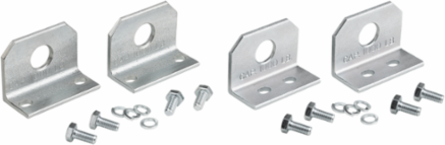

ProLine G2 Lifting Angles, Front-to-Back
Features
- Used to provide best load distribution while lifting two or three joined/ganged enclosures with up to 1000 lbs (453 kg) of equipment and cabling in each bay
- Angles mount to top of enclosure frame corner blocks and do not require removal of top cover for installation.
- Kit consists of two angles, four hex cap screws and four washers.
- Lifting Angles are designed for overhead lifting in conjunction with shackles and a spreader bar. Use of shackles instead of hooks is preferred. The angle between the top of the enclosure and the cable or chain must be at least 45°. Use only slings and spreader bars that are designed for the specific application and are in compliance with regulations established by OSHA, ASME, ISA, ASTM and other governing agencies.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 108 |
| Product Family | ProLine |
| Finish | Plated |
| Weight | 2.9 |
| Sub Brand | ProLine |
| Height (H) | 76 |
|---|---|
| Depth (D) | 51 |
| Material | Mild Steel |
| Thickness (T) | 3.4 |
| Works With | NEMA |
