nVent Hoffman P2ALASS ProLine G2 Lifting Angle Side-to-Side, 2.99x4.25x2.00, Plated, Steel
- MPN: P2ALASS
- UPC: 783510336738
- PPN: HOF-P2ALASS
- UNSPSC: 39121334
CAD
$212.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Lifting Angles provide load distribution during overhead lifting of joined ProLine G2 enclosures. This ProLine G2 Lifting Angle Side-to-Side, P2ALASS item measures 2.99x4.25x2.00 inches with a material of Steel, Plated.
Features
- Used to provide best load distribution while lifting two or three joined/ganged enclosures with up to 1000 lbs (453 kg) of equipment and cabling in each bay
- Angles mount to top of enclosure frame corner blocks and do not require removal of top cover for installation.

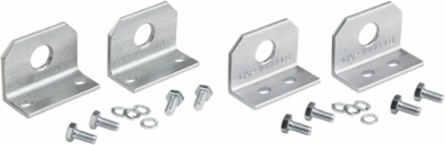

- Kit consists of two angles, four hex cap screws and four washers.
- Lifting Angles are designed for overhead lifting in conjunction with shackles and a spreader bar. Use of shackles instead of hooks is preferred. The angle between the top of the enclosure and the cable or chain must be at least 45°. Use only slings and spreader bars that are designed for the specific application and are in compliance with regulations established by OSHA, ASME, ISA, ASTM and other governing agencies.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 108 |
| Product Family | ProLine |
| Finish | Plated |
| Weight | 3 |
| Sub Brand | ProLine |
| Height (H) | 76 |
|---|---|
| Depth (D) | 51 |
| Material | Mild Steel |
| Thickness (T) | 3.4 |
| Works With | NEMA |
