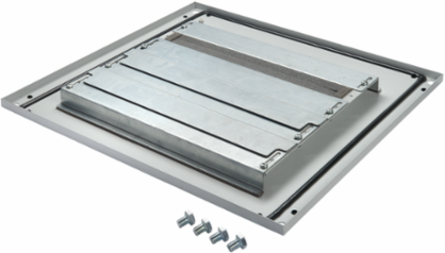

nVent Hoffman P2BGP88G ProLine G2 Gland Plate, fits 800x800mm, Galvanized, Steel
nVent Hoffman P2BGP88G ProLine G2 Gland Plate, fits 800x800mm, Galvanized, Steel
- MPN: P2BGP88G
- UPC: 783510310325
- PPN: HOF-P2BGP88G
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$243.38/ EA
Description
ProLine G2 Gland Plates are cable management solutions supporting persons weight working in enclosure. This ProLine G2 Gland Plate, P2BGP88G item fits 800x800mm with a material of Steel colored Galvanized.
Features
- Consists of a base mounting surface and adjustable foam gasketed gland plates that permit cable entry
- Sturdy, adjustable gland plates designed to bear the weight of a person
- Number of plates varies with depth: 400 mm and 500 mm (3 plates); 600 mm (4 plates); 800 mm (6 plates); 1000 mm (8 plates)
- Galvanized or painted versions
- Sealed to maintain NEMA Type 12 rating
- Gland Plates are finished with paint over plated surfaces
- Can be used with Plinth Base (100 mm or 200 mm), 100 mm Solid Plinth Base, Mobile Base or Transportation Base
- Can be used without a base if casters, levelers or frame feet are installed
- Can be rotated 180 degrees for front or rear cable entry
- Installation hardware included
- Includes additional foam gasketing which can be applied to reposition the gasketed opening towards the center of the cabinet or to create two independent access points
Specifications
Specifications
- BABA
- Contact Manufacturer
- Material
- Mild Steel
- Weight
- 35
- Thickness (T)
- 14
- Sub Brand
- ProLine
Product FamilyProLine
Number of Gland Plate Openings6
FinishGalvanized
Works WithNEMA
