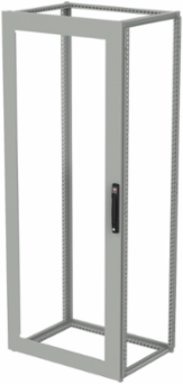

Nvent Hoffman P2DWG106 ProLine G2 Window Doors, fits 1000x600mm, Aluminum, Glass
Nvent Hoffman P2DWG106 ProLine G2 Window Doors, fits 1000x600mm, Aluminum, Glass
- MPN: P2DWG106
- UPC: 783510316068
- PPN: HOF-P2DWG106
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1103.85/ EA
Features
- Safety glass or polycarbonate (for food and beverage applications)
- Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetime
- Clean, contemporary design
- Window doors available for frames up to 1000 mm wide
- 0.25 in. (6.35 mm) thick window to provide maximum protection and viewing area
- Standard door bar system on all window doors for easy accessories attachment
- Low-profile Swing Handle with key lock; other options available
- Seamless polyurethane gasket (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
- Timed latch engagement to ensure top and bottom of door catch reliably
- Durable, double-flanged latch rod and three Delrin® rollers to prevent metal-on-metal grinding
- 3-point latch system for doors ≥ 1000mm in height
- Doors can be hinged on left or right (default left)
- 14-degree hinging standard (180-degree hinge option available)
- Door can be reversed without removing the side covers
- Can be used on front or rear of the ProLine G2 frame; can be used on the sides with side door adapter (not included)
- Two grounding studs
- All mounting hardware included
Specifications
Specifications
- BABA
- Contact Manufacturer
- Material
- Mild Steel
- Color
- Light Gray
- Finish
- Powder Coated
- Works With
- NEMA
Product FamilyProLine
Weight18.58
Color CodeRAL 7035
Thickness (T)1.9
