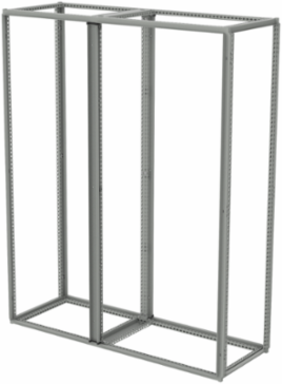

nVent Hoffman P2FD16124 ProLine G2 Disconnect Frames, 1600x1200x400
- MPN: P2FD16124
- UPC: 783510318116
- PPN: HOF-P2FD16124
CAD
$3847.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ProLine G2 Disconnect Frames, 1600x1200x400
Features
- 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- RAL 7035 textured light-gray polyester powder paint finish
- Similar in design and construction as other ProLine G2 frames, but incorporates a 100-mm offset due to the presence of a 200-mm mullion door in the disconnect door solution
- Includes combination removable center upright/verticals in both the front and rear of the enclosure, again with a 100-mm offset
- Disconnect specific frame is required for any enclosure solution >1000mm in width; widths 1000mm or less utilize a standard single-bay frame
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Material | Mild Steel |
| Max Rack Mount Unit | 33 |
| Color | Light Gray |
| Finish | Powder Coated |
| Works With | NEMA |
| Product Family | ProLine |
|---|---|
| Max Subpanel Size | 59.3 x 44.4 |
| Weight | 545 |
| Color Code | RAL 7035 |
| Thickness (T) | 12 |
