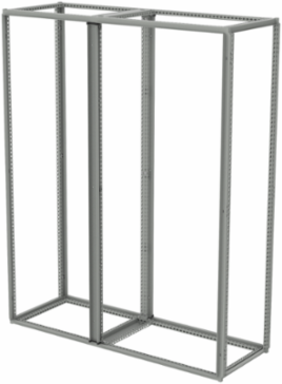

nVent Hoffman P2FD18184 ProLine G2 Disconnect Frames, 1800x1800x400
- MPN: P2FD18184
- UPC: 783510318253
- PPN: HOF-P2FD18184
CAD
$4806.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ProLine G2 Disconnect Frames, 1800x1800x400
Features
- 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- RAL 7035 textured light-gray polyester powder paint finish
- Similar in design and construction as other ProLine G2 frames, but incorporates a 100-mm offset due to the presence of a 200-mm mullion door in the disconnect door solution
- Includes combination removable center upright/verticals in both the front and rear of the enclosure, again with a 100-mm offset
- Disconnect specific frame is required for any enclosure solution >1000mm in width; widths 1000mm or less utilize a standard single-bay frame
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Material
- Mild Steel
- Max Rack Mount Unit
- 38
- Color
- Light Gray
- Finish
- Powder Coated
- Works With
- NEMA
Product FamilyProLine
Max Subpanel Size67.2 x 68.0
Weight545
Color CodeRAL 7035
Thickness (T)12
