nVent Hoffman P2KPD2068Z5510 ProLine G2 Partial Door Industrial Package Type 12, 2000x600x800, Lt Gray, Steel
- MPN: P2KPD2068Z5510
- UPC: 783510369156
- PPN: HOF-P2KPD2068Z5510
- UNSPSC: 39121334
CAD
$3498.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

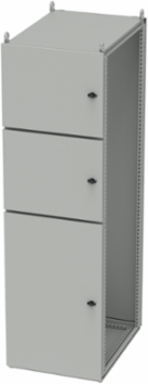

ProLine G2 Partial Door Industrial Packages built from standard ProLine G2 frame for shorter doors. This ProLine G2 Partial Door Industrial Package Type 12, P2KPD2068Z5510 item measures 2000x600x800mm with material of Steel colored Lt Gray.
Features
- 12 gauge (2.5mm), roll-formed steel frame with welded steel corners and hybrid frame profile for superior performance under load
- Welded frame cross members ensure proper environmental sealing of partial doors
- Internal Barrier Panel(s) required to isolate partial height compartments (sold separately)
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Door bar system and two grounding studs present
- Doors utilize 3-point cam latch system
- Wing knob, padlocking handle standard on all partial doors; other quarter-turn options available
- Seamless polyurethane gasket provides a water-tight, dust-tight seal against moisture and contaminants
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Product Family
- ProLine
- Color Code
- RAL 7035
- Weight
- 158.37
- Material
- Mild Steel
- Connection
- No
- Color
- RAL 7035 Light Gray
- Mounting
- Floor
- NEMA Rating
- 12
Height (H)2,000
Depth (D)31.5
FinishPowder Coated
Thickness (T)2.5
Sub BrandProLine
Cable EntryNo
Size78.70 x 23.60 x 31.50
InsulationNo
Cubic Capacity34 Cubic Feet
