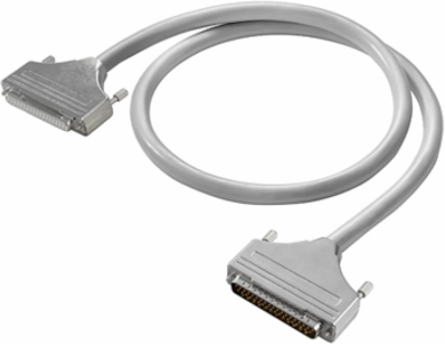

Weidmuller 1349920020 PAC-UNIV-D25F-D25F-2M
- MPN: 1349920020
- PPN: WDM-1349920020
CAD
$247.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pre-assembled cable, PAC, Cable LiYCY, 10.15 ± 1 mm
Specifications
General Data
| Connector PLC side | SUB-D FEMALE 25P |
|---|---|
| Number of poles, min. | 25-pole |
| Cable | Cable LiYCY |
| Material | PVC |
| Interface connector | SUB-D FEMALE 25P |
|---|---|
| Outer diameter | 10.15 ± 1 mm |
| Cable length | 2 m |
| Wire cross-section | 0.25 mm² |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 454 g |
|---|
Electrical Data
| Rated voltage (text) | ≤ 60 Vdc ≤ 25 Vac |
|---|---|
| Total current, max. | 3 A |
| Permissible current strength per path, max. | 1 A |
|---|---|
| Resistance | ≤ 80 mΩ/m |
Classifications
| ETIM 6.0 | EC000237 |
|---|---|
| eClass 9.0 | 27-24-22-20 |
| eClass 10.0 | 27-24-22-20 |
| ETIM 7.0 | EC000237 |
|---|---|
| eClass 9.1 | 27-24-22-20 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 60 °C |
| Operating temperature | -10...50 °C |
| Operating temperature, min. | -10 °C |
|---|---|
| Storage temperature, min. | -10 °C |
| Storage temperature | -10...60 °C |
