Weidmuller 1350400035 PAC-UNIV-D9M-F-3M5
- MPN: 1350400035
- PPN: WDM-1350400035
CAD
$151.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

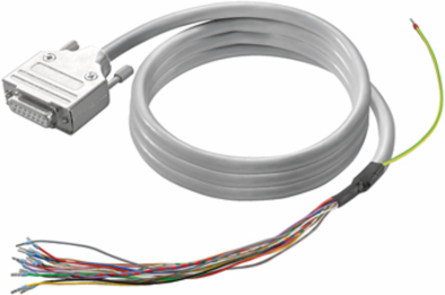

Pre-assembled cable, PAC, Cable LiYCY, 7,8 ± 1 mm
Documentation & Downloads
Specifications
General Data
- Connector PLC side
- H0.25/10 (FERRULES 0.25mm²)
- Number of poles, min.
- 9-pole
- Cable
- Cable LiYCY
- Material
- PVC
Interface connectorSUB-D MALE 9P
Outer diameter7,8 ± 1 mm
Cable length3.5 m
Wire cross-section0.25 mm²
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 429 g
Electrical Data
- Rated voltage (text)
- ≤ 60 Vdc ≤ 25 Vac
- Total current, max.
- 3 A
Permissible current strength per path, max.1 A
Resistance≤ 80 mΩ/m
Classifications
- ETIM 6.0
- EC000237
- eClass 9.0
- 27-24-22-20
- eClass 10.0
- 27-24-22-20
ETIM 7.0EC000237
eClass 9.127-24-22-20
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 50 °C
- Storage temperature, max.
- 60 °C
- Operating temperature
- -10...50 °C
Operating temperature, min.-10 °C
Storage temperature, min.-10 °C
Storage temperature-10...60 °C
