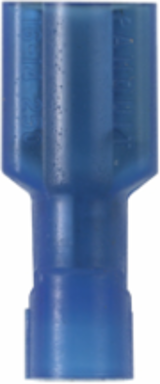

Panduit DNF14-250FI-L Pan-Term® DNF14-250FI-L Loose Piece Disconnect
- MPN: DNF14-250FI-L
- UPC: 074983119066
- PPN: PAN-DNF14-250FI-L
- UNSPSC: 39121409
CAD
$1.07
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.94" (23.9 mm) long and 0.36" (9.1 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 50.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Product Segment | IEI |
| Color Code | Blue |
| Overall Width (In.) | 0.36 |
| Sub Brand | Pan-Term® |
| Maximum Operating Temperature (°C) | 221 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Insulation Diameter (In.) | 0.16 |
| Maximum Operating Temperature (°F) | 105 |
| Overall Thickness (mm) | 6.1 |
| Seam Type | Butted with Sleeve |
| Flammability Rating | UL 94 HB |
| Insulation Material | Nylon |
| Tab Size (mm) | 6.3 x 0.8 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| For Use With | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Tab Size (In.) | 0.250 x 0.032 |
| Insulation Diameter (mm) | 4.1 |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size | 16-14 AWG |
| Any Reason Not to Sell | N |
|---|---|
| Overall Length (mm) | 23.9 |
| Insulation Type | Fully Insulated |
| Base Material | Brass |
| Product Type | Disconnect |
| Wire Strip Length (In.) | 9/32 |
| Barrel Type | Funnel Entry |
| Wire Strip Length (mm) | 7.1 |
| Maximum Voltage (kV) | 0.6 |
| Tongue Angle | Straight |
| Overall Depth (In.) | 0.94 |
| Overall Thickness (In.) | 0.24 |
| Overall Width (mm) | 9.1 |
| Overall Height (In.) | 0.24 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Disconnect Type | Female Disconnect |
| Overall Height (mm) | 6.1 |
| Maximum Voltage (V) | 600 |
| Packaging Type | Bottle |
| Overall Length (In.) | 0.94 |
| Wire Size | 16-14 AWG |
Packaging Details
| UPC | 07498311906 |
|---|---|
| Standard Package Volume Ft3 | 0.0074 |
| Std Package Height In | 1.75 |
| Std Package Length In | 3.6 |
| Std Package Width In | 1.8 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 50 |
| Standard Carton Volume Ft3 | 0.0368 |
| Std Carton Height In | 3.7 |
| Std Carton Length In | 9.25 |
| Std Carton Width In | 2.2 |
| Std Ctn Qty | 250 |
| EAN | 00074983119066 |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 0 |
| Pallet Weight | 0.0000 |
| GTIN Package | 00074983119066 |
|---|---|
| Standard Package Weight Pounds | 0.1650 |
| Std Package Height MM | 44.45 |
| Std Package Length MM | 91.44 |
| Std Package Width MM | 45.72 |
| UOM EA PK | PK |
| GTIN Carton | 50074983119061 |
| Standard Carton Weight Pounds | 0.8250 |
| Std Carton Height MM | 93.98 |
| Std Carton Length MM | 234.95 |
| Std Carton Width MM | 55.88 |
| Min. Order UOM | Piece |
| REACH Status | N |
| Mercury Content Indicator | N |
| Min Order Qty | 250.0000 |
| Pallet Volume | 0.000000 |
| RoHS Compliant | Compliant |
